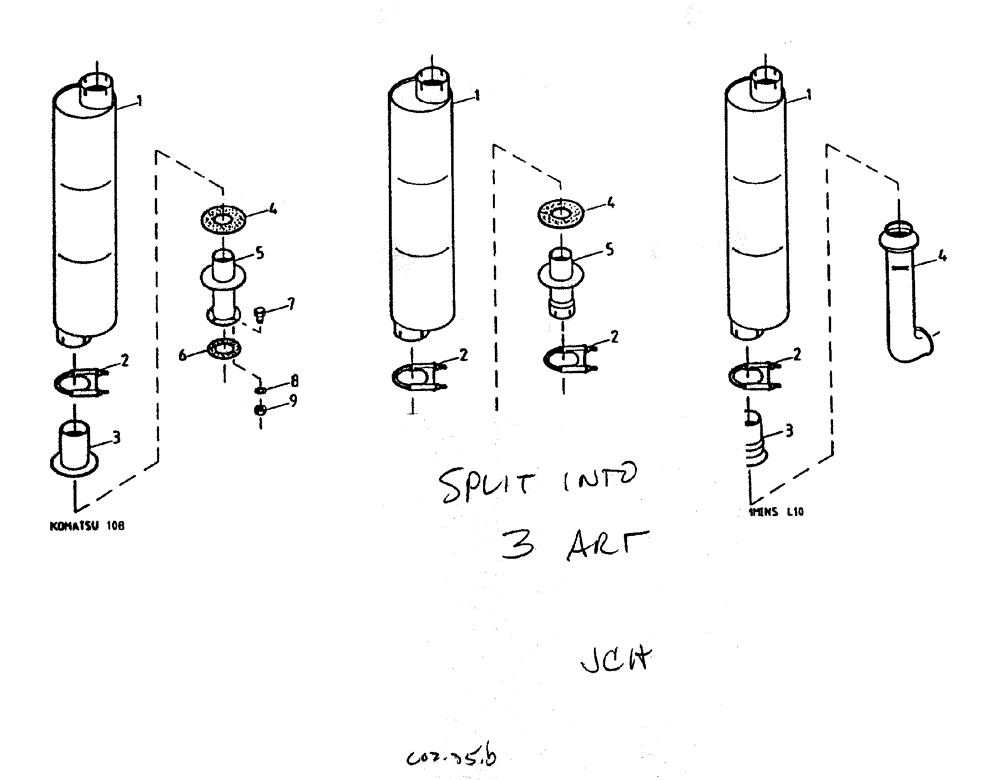

Запчасти Case IH 7000 (C02-35A) - EXHAUST (KOMATSU 108/6CT/L10), SERIAL #7908 AND ONWARDS Engine & Engine Attachments

1

00136929

MUFFLER

Komatsu 108

1шт.

2

00131539

CLAMP

Komatsu 108

1шт.

3

86976800

SEAL

flange, Komatsu 108

1шт.

4

87213334

GASKET

Komatsu 108

1шт.

5

87236745

PIPE FITTING

ADAPTOR, Komatsu 108

1шт.

6

87213333

GASKET

Komatsu 108

1шт.

7

FM110020

BOLT

Komatsu 108

4шт.

8

WB100000

WASHER

Komatsu 108

4шт.

9

NA110000

NUT

Komatsu 108

4шт.

1

00136929

MUFFLER

6CT Cummins

1шт.

2

00131539

CLAMP

6CT Cummins

2шт.

3

86976800

SEAL

flange, 6CT Cummins

1шт.

4

87235671

GASKET,2mm Thk

6CT Cummins

1шт.

5

87236744

ADAPTER

ADAPTOR, 6CT Cummins

1шт.

1

00136929

MUFFLER

L10 Cummins

1шт.

2

00131539

CLAMP

L10 Cummins

1шт.

3

00180931

TUBE ASSY.

EXHAUST BELL, L10 Cummins

1шт.

4

87238353

TURBOCHARGER

ADAPTOR, L10 Cummins

1шт.
