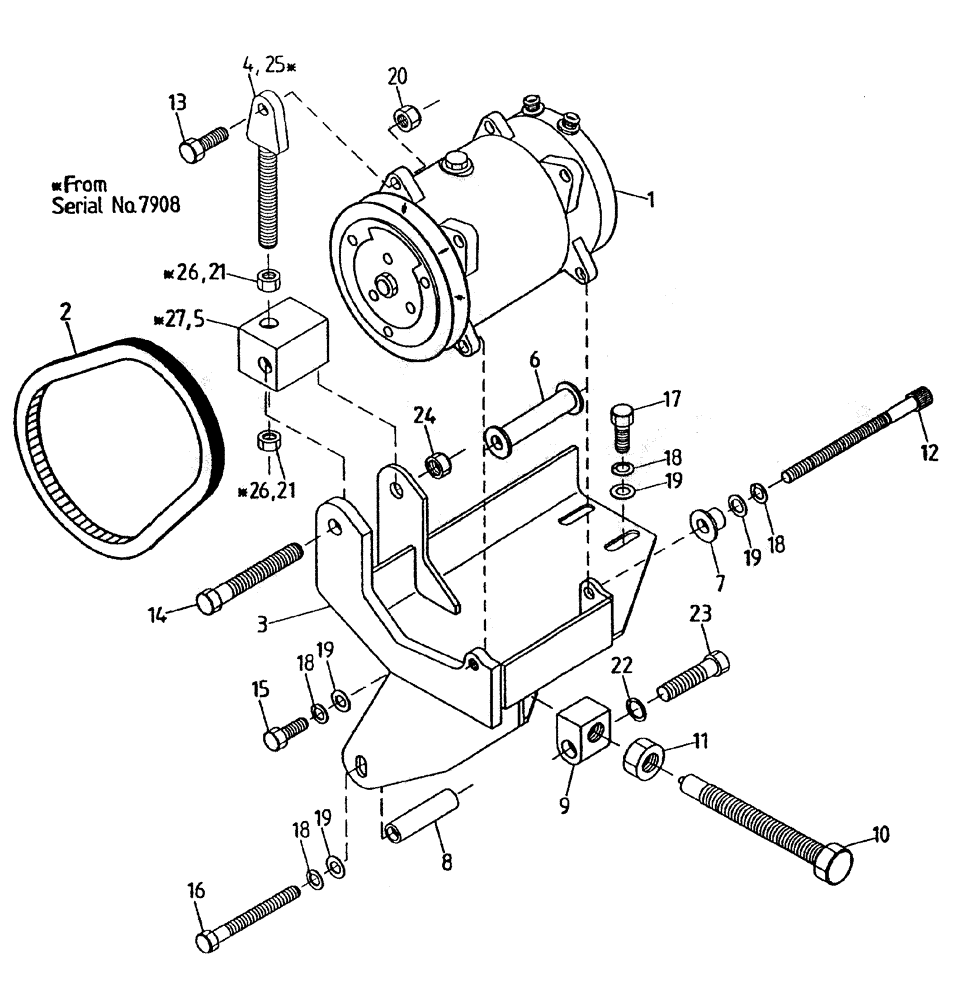

Запчасти Case IH 7000 (A05-80) - AIR CONDITIONER COMPRESSOR, MOUNT AND BELT, (108) Mainframe & Functioning Components

1

00137292

COMPRESSOR

1шт.

2

00180480

BELT

V

1шт.

3

87227874

MOUNTING PARTS

1шт.

4

87235507

BOLT

BOLT (up to and including serial #7907)

1шт.

5

87227855

BLOCK (up to and including serial #7907)

1шт.

6

87235497

BUSHING,10.3mm ID x 25.4mm OD x 83.3mm L

SPACER

1шт.

7

87235498

SPACER

1шт.

8

87219277

SPACER

1шт.

9

87227875

PIVOT

BLOCK

1шт.

10

87227878

SPECIAL BOLT,Adjusting, M16 x 2 x 157mm

SCREW

1шт.

11

NA116000

NUT

1шт.

12

FC110140

SCREW,M10 x 1.5 x 140mm

1шт.

13

FA110035

BOLT

1шт.

14

FA112090

BOLT

1шт.

15

FC110025

SCREW,M10 x 1.5 x 25mm

1шт.

16

FA110090

BOLT

1шт.

17

FA110020

BOLT

2шт.

18

WB100000

WASHER

5шт.

19

WA100000

WASHER

5шт.

20

NC110000

NUT

1шт.

21

NA112000

NUT

(up to and including serial #7907)

2шт.

22

WB120000

WASHER

1шт.

23

FA212050

BOLT

1шт.

24

NC112000

NUT

1шт.

25

87237012

ADJUSTMENT SCREW,150mm L

BOLT (serial #7908 and onwards)

1шт.

26

NA116000

NUT

(serial #7908 and onwards)

2шт.

27

87237015

BLOCK

(serial #7908 and onwards)

1шт.
