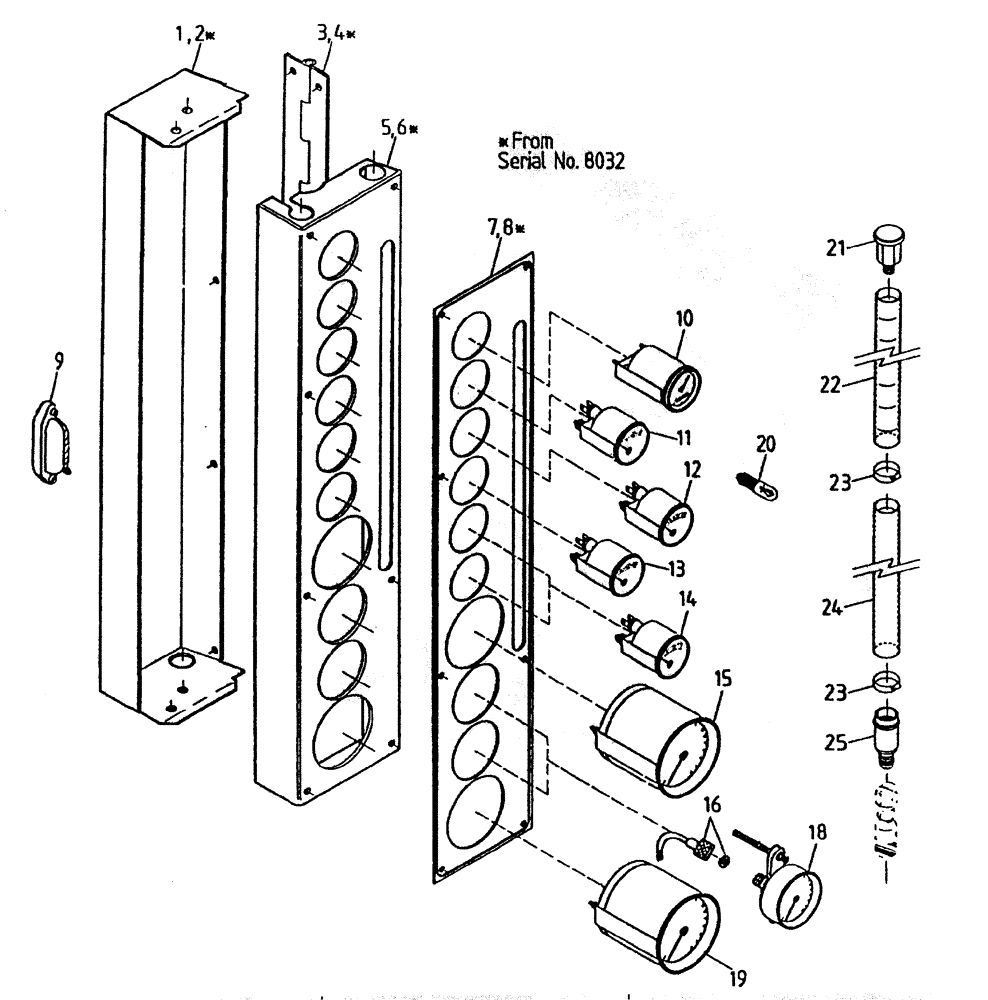

Запчасти Case IH 7000 (A05-25A) - CABIN INSTRUMENT PANEL, SERIAL #7908 AND ONWARDS Mainframe & Functioning Components

1

87231960

PANEL (rear) (up to and including serial #8031)

1шт.

2

87238257

PANEL

(rear) (serial #8032 and onwards)

1шт.

3

87231961

HINGE (up to and including serial #8031)

1шт.

4

87238262

HINGE

(serial #8032 and onwards)

1шт.

5

87231959

PANEL (front) (up to and including serial #8031)

1шт.

6

87238258

PANEL (front) (serial #8032 and onwards)

1шт.

7

87231953

DECAL (up to and including serial #8031)

1шт.

8

87238255

DECAL

DECAL (serial #8032 and onwards)

1шт.

9

00180880

LAMP

LIGHT

2шт.

10

00136086

HOURMETER

1шт.

11

00136934

VOLTMETER

1шт.

12

00137025

KIT

fuel

1шт.

13

00134512

ELECTRICAL GAUGE

oil pressure (KOMATSU)

1шт.

13

00180678

OIL PRESSURE GAUGE

(CUMMINS)

1шт.

14

00134514

ELECTRICAL GAUGE

temperature

2шт.

15

00180861

TACHOMETER

1шт.

16

00408921

HOSE

2шт.

18

00137028

OIL PRESSURE GAUGE

2шт.

19

00180618

TACHOMETER

1шт.

20

00180431

BULB

gauge

1шт.

21

00131655

BREATHER

1шт.

22

87236723

TUBE,19.10 mm ID x 610 mm L

1шт.

22

87236728

DECAL

1шт.

23

00154524

HOSE CLAMP

2шт.

24

87024700

TUBE

1шт.

25

87024100

HYD CONNECTOR

ADAPTOR

1шт.
