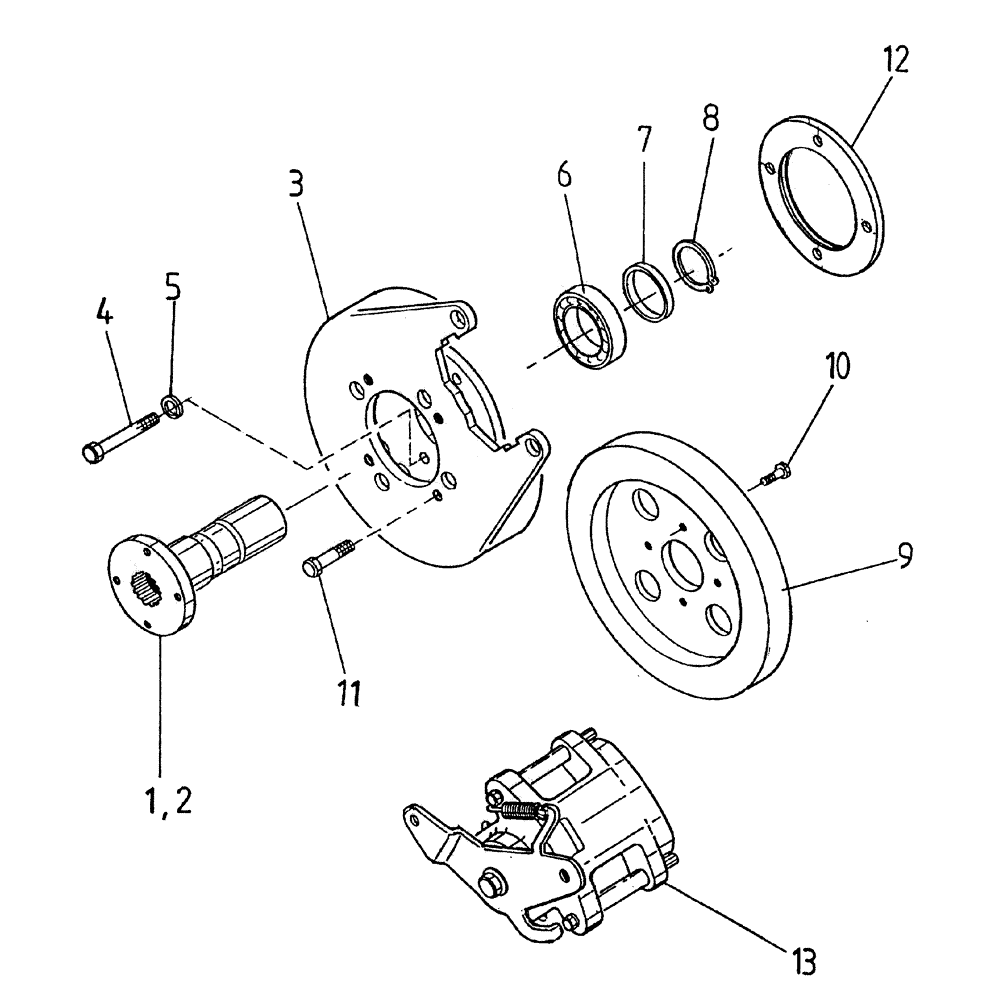

Запчасти Case IH 7000 (A04-30) - BRAKES ([LH] 7000) Mainframe & Functioning Components

1

86982900

SHAFT

(standard transmission) (up to and including serial #7907)

1шт.

2

87231566

SHAFT

(tandem transmission)

1шт.

3

87218686

MOUNTING PARTS

1шт.

4

FM112060

BOLT

4шт.

5

WB120000

WASHER

4шт.

6

00140303

BALL BEARING

1шт.

7

00100712

OIL SEAL

1шт.

8

CE045000

CIRCLIP

1шт.

9

87218689

DISC

1шт.

10

00601501

BOLT

4шт.

11

FM112030

BOLT

4шт.

12

87230609

SPACER (up to and including serial #7907)

1шт.

13

87239100

BRAKE

CALLIPER (complete)

1шт.

13

00139743

BRAKE LINING

PAD SET

1шт.

13

00139744

REPAIR KIT

hydraulic

1шт.

14

87231841

LEVER

1шт.
