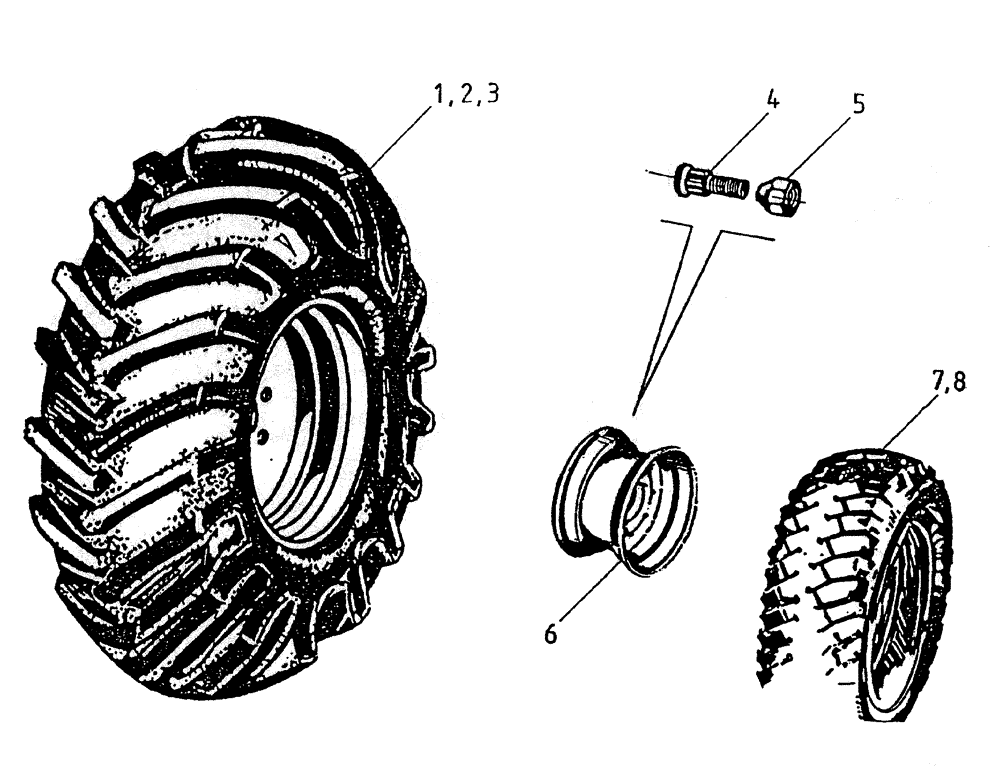

Запчасти Case IH 7000 (A04-05) - WHEELS (7000) Mainframe & Functioning Components

1

87215724

WHEEL

RIM (26") (rear)

2шт.

1

87217882

RIM

RIM (30") (rear)

2шт.

1

87217878

RIM (30") (rear - narrow)

2шт.

2

00132891

TUBE

(26")

2шт.

2

00132536

TUBE

(30")

2шт.

3

00135731

TYRE/TIRE

(32.1 x 26)

2шт.

3

00132542

TYRE/TIRE

TYRE (18.4 x 30)

2шт.

4

00607976

VALVE STEM

(up to and including serial #8031)

16шт.

5

00608178

WHEEL

NUT (up to and including serial #8031)

16шт.

6

87232350

RIM

(front) (up to and including serial #8031)

2шт.

7

00138709

TUBE

(12.00 x 16.5)

2шт.

8

00180551

TYRE/TIRE

(12.00 x 16.5)

2шт.

9

87232353

TYRE/TIRE

ASSEMBLY (front)

2шт.

10

87219403

WHEEL

ASSEMBLY (26") (RH rear)

1шт.

11

87219404

WHEEL

ASSEMBLY (26") (LH rear)

1шт.

12

87217884

WHEEL ASSY

ASSEMBLY (30") (RH rear)

1шт.

13

87217885

ASSEMBLY (30") (LH rear)

1шт.

14

87217880

ASSEMBLY (30") (RH rear - narrow)

1шт.

15

87217881

ASSEMBLY (30") (LH rear - narrow)

1шт.

16

00608020

STUD

(serial #8032 and onwards)

16шт.

17

00607915

NUT

wheel (Serial #8032 and onwards)

16шт.

18

87237989

RIM

RIM (front) (serial #8032 and onwards)

2шт.
