(A03-10) - PRIMARY EXTRACTOR ROLLER, UP TO AND INCLUDING SERIAL #7917

Запчасти Case IH 7000 (A03-10) - PRIMARY EXTRACTOR ROLLER, UP TO AND INCLUDING SERIAL #7917 Mainframe & Functioning Components

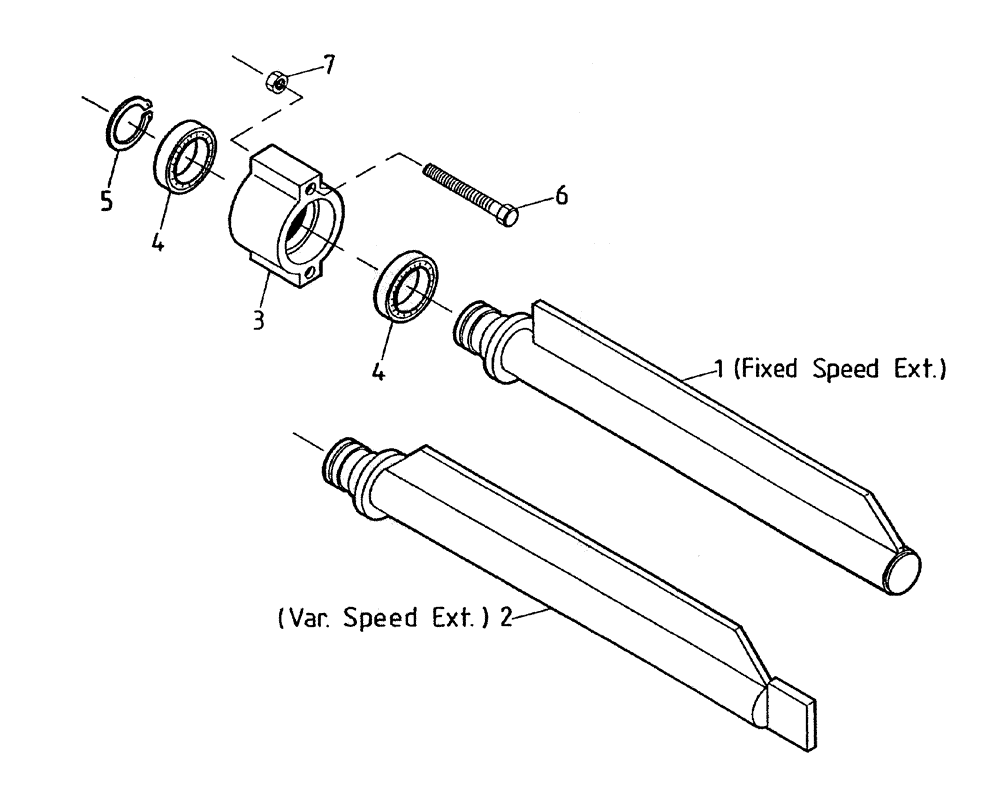

Схема запчастей Case IH 7000 - (A03-10) - PRIMARY EXTRACTOR ROLLER, UP TO AND INCLUDING SERIAL #7917 Mainframe & Functioning Components
4
5
6
4
3
2
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87213686

ROLLER

(fixed speed)

1шт.

2

87231967

ROLLER

ROLLER (variable speed)

1шт.

3

87213682

HOUSING, BEARING,71 mm ID x 75 mm

1шт.

4

00144079

BALL BEARING

2шт.

5

CE050000

CIRCLIP

1шт.

6

00601558

BOLT

2шт.

7

00605797

NUT

2шт.
