(A02-35) - BUTTLIFT ROLLER - UNDERSLUNG BASECUTTER, UP TO AND INCLUDING SERIAL #7907

Запчасти Case IH 7000 (A02-35) - BUTTLIFT ROLLER - UNDERSLUNG BASECUTTER, UP TO AND INCLUDING SERIAL #7907 Mainframe & Functioning Components

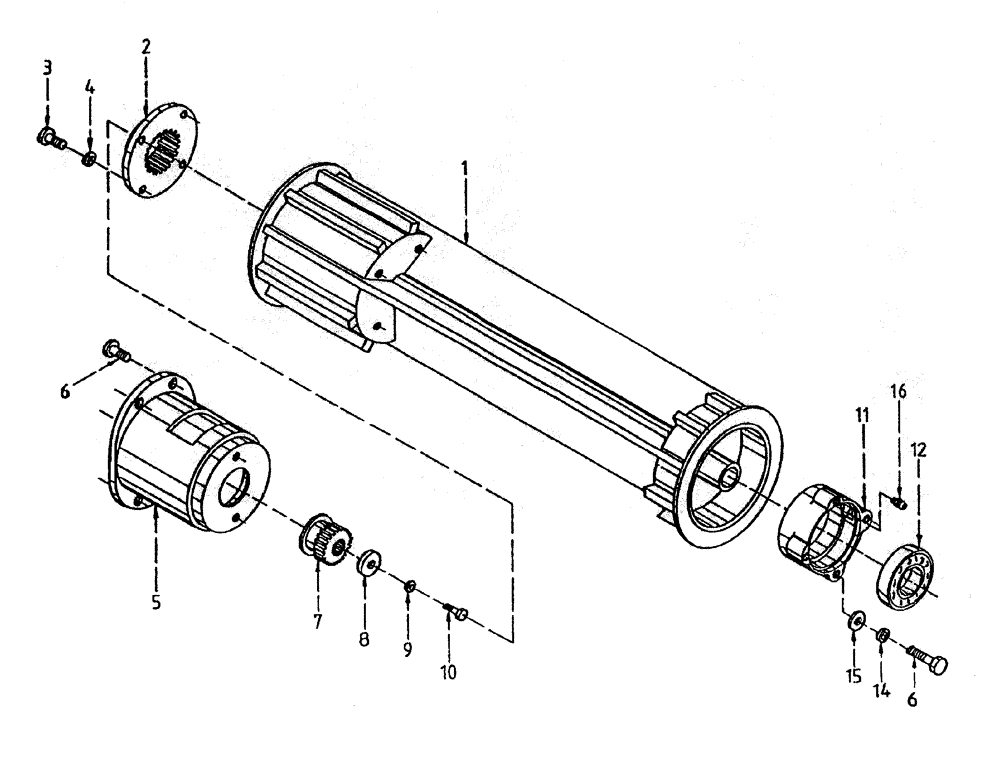

Схема запчастей Case IH 7000 - (A02-35) - BUTTLIFT ROLLER - UNDERSLUNG BASECUTTER, UP TO AND INCLUDING SERIAL #7907 Mainframe & Functioning Components
16
9
3
11
7
5
1
6
8
10
12
15
6
4
2
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87219601

ROLLER

1шт.

2

86700800

ADAPTER

1шт.

3

FM112025

BOLT

4шт.

4

WB120000

WASHER

4шт.

5

87096600

HOUSING

1шт.

6

00601511

BOLT

8шт.

7

86701200

GEAR

PINION

1шт.

8

86778400

WASHER,10.5mm ID x 38.5mm OD x 5.15mm Thk

WASHER

1шт.

9

00605827

WASHER

1шт.

10

00601499

BOLT

1шт.

11

87213555

HOUSING, BEARING,87 mm ID x 62 mm

1шт.

12

00140499

BEARING

1шт.

14

00605829

WASHER

4шт.

15

00135789

WASHER

4шт.

16

00153751

LUBE NIPPLE

grease

1шт.
