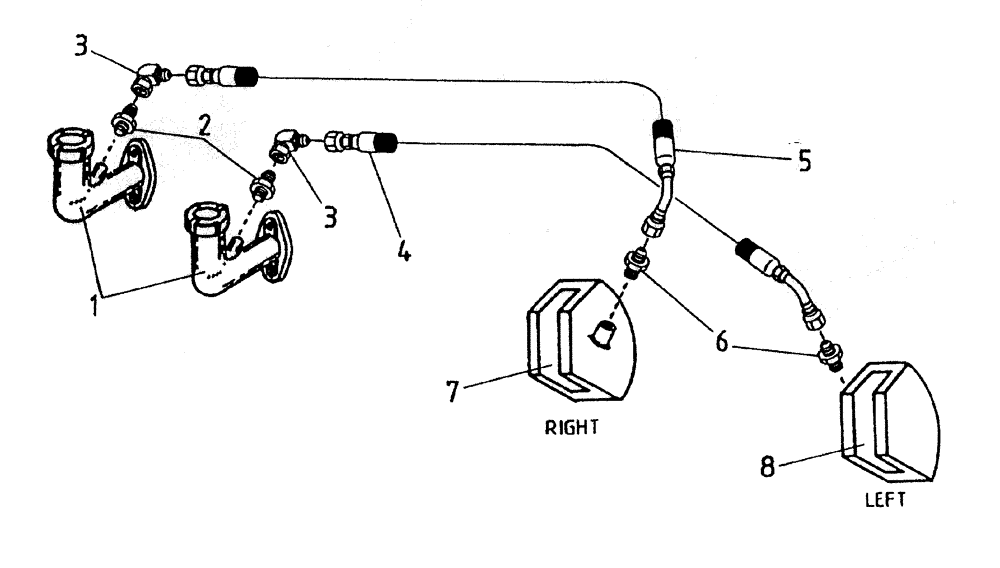

Запчасти Case IH 7000 (B07-05) - HYDRAULIC CIRCUIT (BRAKES 7000) Hydraulic Components & Circuits

1

BRAKE MASTER CYLINDER (Refer Figure A04-45)

1шт.

2

86310969

ADAPTER

NIPPLE

2шт.

3

00402879

HYD CONNECTOR

ELBOW

2шт.

4

87234086

HOSE

1шт.

5

87233552

HOSE

(Up to and including S/N 7907)

1шт.

5

82710800

HOSE,6.35mm ID x 4000mm L, SAE 100R17

HOSE (serial #7908 and onwards)

1шт.

6

86348200

ADAPTER

NIPPLE

2шт.

7

BRAKES (Refer Figure A04-25) (up to and including serial #7907)

1шт.

7

BRAKES (Refer Figure A04-25-A) (serial #7908 and onwards)

1шт.

8

BRAKES (Refer Figure A04-30)

1шт.
