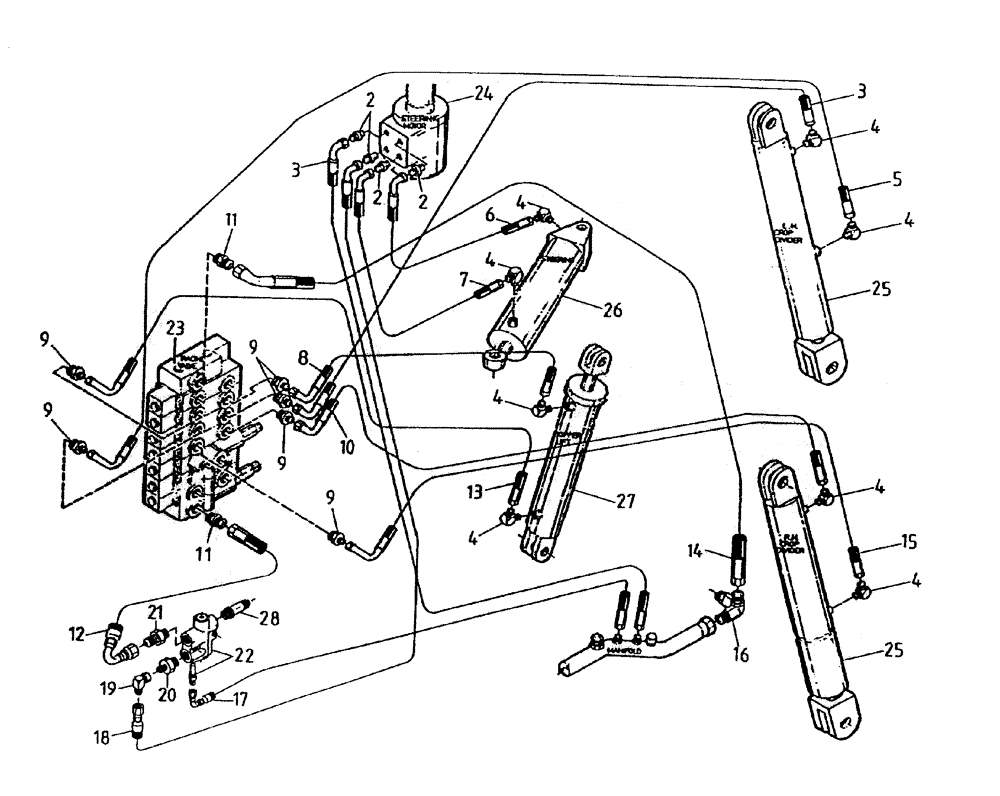

Запчасти Case IH 7000 (B06-20A) - HYDRAULIC CIRCUIT, (STEERING, TOPPER AND CROPDIVIDER 7000) Hydraulic Components & Circuits

2

00400224

HYD CONNECTOR

NIPPLE

4шт.

3

82725000

HOSE ASSY.,6.35mm ID x 2720mm L, SAE 100R17

2шт.

4

00400189

HYD CONNECTOR

ELBOW

9шт.

5

87038600

HOSE,6.35mm ID x 2420mm L, SAE 100R17

HOSE

1шт.

6

86327600

HOSE ASSY.

1шт.

7

82702100

HOSE ASSY.

1шт.

8

87216749

HOSE ASSY.

1шт.

9

00400074

HYD CONNECTOR

NIPPLE

6шт.

10

87222416

HYDRAULIC HOSE

1шт.

11

00400228

HYD CONNECTOR

NIPPLE

2шт.

12

86308586

HOSE ASSY.

1шт.

13

87234083

HOSE

1шт.

14

86300987

HOSE ASSY.

1шт.

15

87216961

HOSE

HOSE

1шт.

16

86310816

HYD CONNECTOR

ADAPTOR

1шт.

17

87235740

HOSE

1шт.

18

86315420

HOSE ASSY.

1шт.

19

00402879

HYD CONNECTOR

ELBOW

1шт.

20

00401868

HYD CONNECTOR

NIPPLE

1шт.

21

00400230

HYD CONNECTOR

NIPPLE

1шт.

22

HYDRAULIC PRIORITY VALVE (Refer Figure B04-35)

1шт.

23

HYDRAULIC RACINE VALVE (Refer Figure B04-20)

1шт.

24

HYDRAULIC MOTOR (Refer Figure B02-45)

1шт.

25

HYDRAULIC CYLINDER (Refer Figure B01-05)

1шт.

26

HYDRAULIC CYLINDER (Refer Figure B01-35)

1шт.

27

HYDRAULIC CYLINDER (Refer Figure B01-00)

1шт.

28

00408732

HYD CONNECTOR

NIPPLE

1шт.
