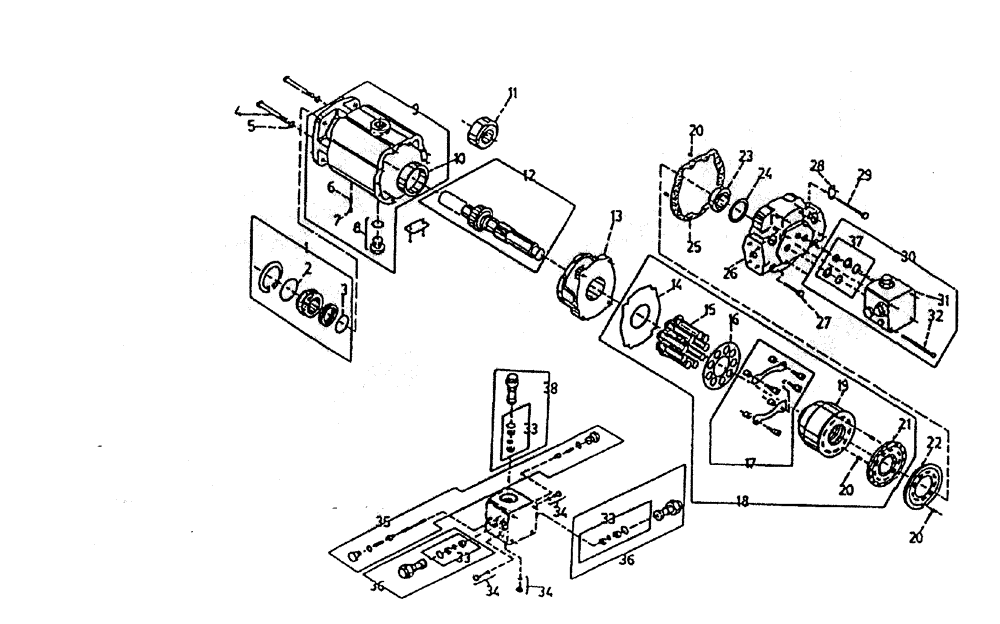

Запчасти Case IH 7000 (B02-85) - HYDRAULIC MOTOR (REAR WHEEL [RH] 7000), UP TO AND INCLUDING Hydraulic Components & Circuits

1

00407127

SEAL

KIT (shaft)

1шт.

2

00407128

O-RING

1шт.

3

00407129

O-RING

1шт.

4

00407164

SCREW

2шт.

5

00407165

WASHER

2шт.

6

00407131

DOWEL

DOWEL

1шт.

7

00407132

PLUG

PLUG

1шт.

8

00407135

PLUG

o-ring

1шт.

9

00407167

WEAR PLATE

HOUSING ASSEMBLY

1шт.

10

00407168

BEARING, CUP

1шт.

11

00407170

BEARING SET

KIT

1шт.

12

00407169

SHAFT

1шт.

13

00407171

WEAR PLATE

swash

1шт.

14

00407172

WEAR PLATE

1шт.

15

00407174

PISTON

PISTON

9шт.

16

00407175

SLIPPER

PLATE

1шт.

17

00407176

HYD PUMP REPAIR KIT

holddown

1шт.

18

00407173

FIP KIT

ROTATING GROUP KIT

1шт.

19

00407177

CYLINDER

BARREL

1шт.

20

00407134

DOWEL

5шт.

21

00407178

PLATE

1шт.

22

00407179

HYDRAULIC MOTOR

PLATE

1шт.

23

00407181

COVER

BEARING KIT

1шт.

24

00407182

SHIM KIT

1шт.

25

00407180

GASKET

1шт.

26

00407183

HYDRAULIC MOTOR

END COVER

1шт.

27

00407186

BOLT

2шт.

28

00407184

STRAP

2шт.

29

00407185

BOLT

6шт.

30

00407187

PUMP, HYDROSTATIC

HYDROSTATIC PUMP VALVE BLOCK KIT

1шт.

31

00407188

PUMP, HYDROSTATIC

HYDROSTATIC PUMP VALVE BLOCK

1шт.

32

00407158

BOLT

BOLT

4шт.

33

00407161

SEAL KIT

(relief valve)

3шт.

34

00407163

PLUG

o-ring

3шт.

35

00407162

HYDRAULIC VALVE

KIT shuttle

1шт.

36

00407189

VALVE, PRESSURE RELI

EF

2шт.

37

00407157

SEAL KIT

(valve block)

2шт.

38

00407159

HYDRAULIC VALVE

relief

1шт.

39

00407190

SEAL

KIT

1шт.

40

00407081

HYDRAULIC MOTOR

ASSEMBLY

1шт.

00407548

SHIM

.002", available for relief valve settings

1шт.

00407549

SHIM

.007", available for relief valve settings

1шт.

00407550

SHIM

.014", available for relief valve settings

1шт.

00407551

SHIM

.035", available for relief valve settings

1шт.

00407552

SHIM

.060", available for relief valve settings

1шт.

00407554

SPRING

260 P.S.I., available for relief valve settings

1шт.
