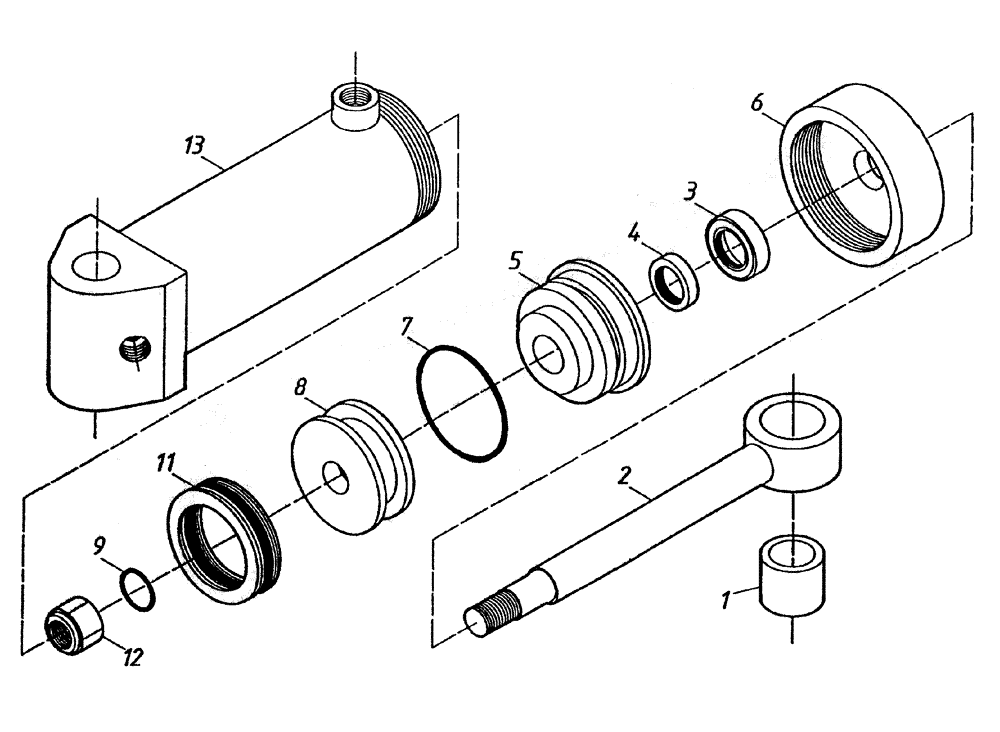

Запчасти Case IH 7000 (B01-35) - HYDRAULIC CYLINDER (STEERING 7000) Hydraulic Components & Circuits

1

00141593

BUSHING

1шт.

2

83083200

HYDRAULIC CYLINDER

ROD

1шт.

3

00100552

OIL SEAL

SCRAPER

1шт.

4

00100759

OIL SEAL

1шт.

5

87214813

CYLINDER

END

1шт.

6

86930200

NUT

1шт.

7

00100106

O-RING

1шт.

8

83083500

PISTON

1шт.

9

00100015

STEP

O-RING

1шт.

11

00100584

OIL SEAL

1шт.

12

00606017

LOCK NUT

1шт.

13

87214811

CYLINDER

BARREL (welded assembly)

1шт.

14

86758800

PIN,25.4mm OD x 130mm L

1шт.

15

86759100

PIN,25.4mm OD x 80mm L

1шт.

16

87214814

SEAL KIT

1шт.

17

86935400

CYLINDER ASSY.,Double Acting, 22.23mm Rod

(excluding pins)

1шт.
