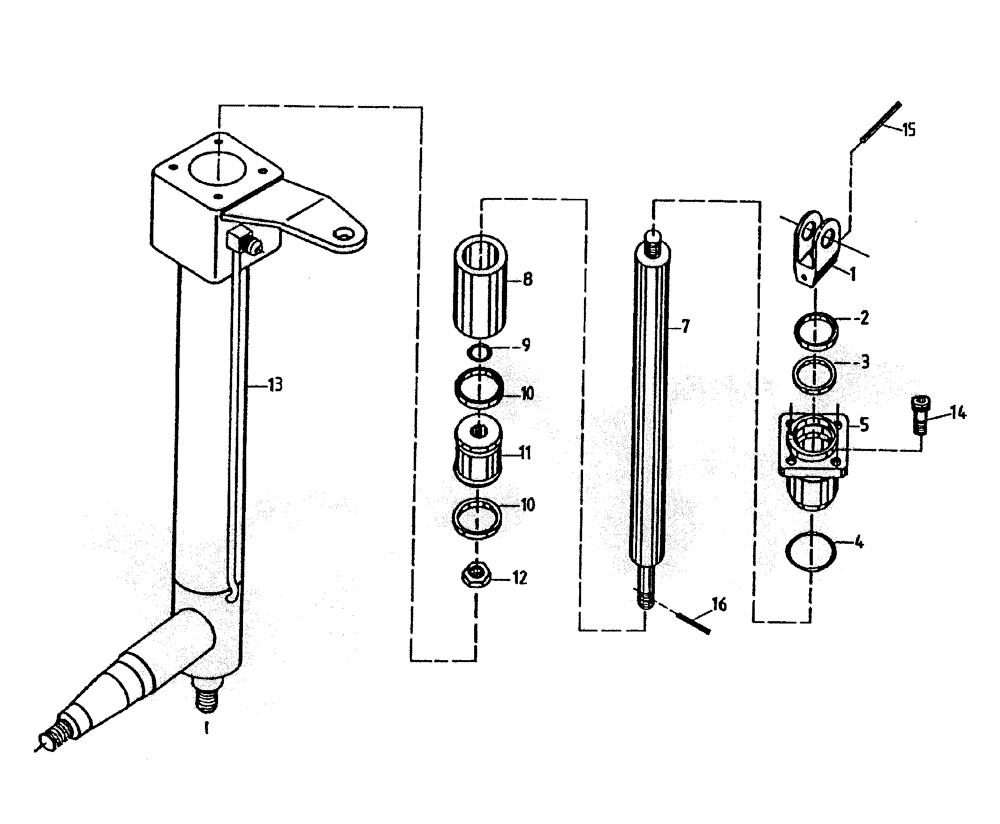

Запчасти Case IH 7000 (B01-15) - HYDRAULIC CYLINDER (BASECUTTER LIFT 7000) Hydraulic Components & Circuits

1

86786800

CLEVIS

1шт.

2

00100719

SEAL

1шт.

3

00100718

OIL SEAL

1шт.

4

00100112

O-RING

1шт.

5

87213959

WELDED END

BOSS

1шт.

7

86854500

SHAFT,57.15mm OD x 710mm L

ROD

1шт.

8

86854200

SPACER,57.35mm ID x 69.85mm OD x 100mm L

1шт.

9

00100019

O-RING

1шт.

10

00100710

WIPER SEAL

2шт.

11

86742100

CYLINDER,76.08mm Bore, 26.44mm Rod, 60mm W

PISTON

1шт.

12

00606613

NUT

1шт.

13

87224203

CYLINDER,82.5mm Bore Dia

BARREL (LH) (welded assembly)

1шт.

13

87224205

CYLINDER

BARREL (RH) (welded assembly)

1шт.

14

00604535

SCREW

4шт.

15

00607380

PIN

1шт.

16

00607316

PIN

1шт.

18

87214368

SEAL KIT

1шт.

19

87224200

CYLINDER,57.15mm Rod, 368.5mm Stroke

ASSEMBLY (LH)

1шт.

20

87224204

CYLINDER

ASSEMBLY (RH)

1шт.
