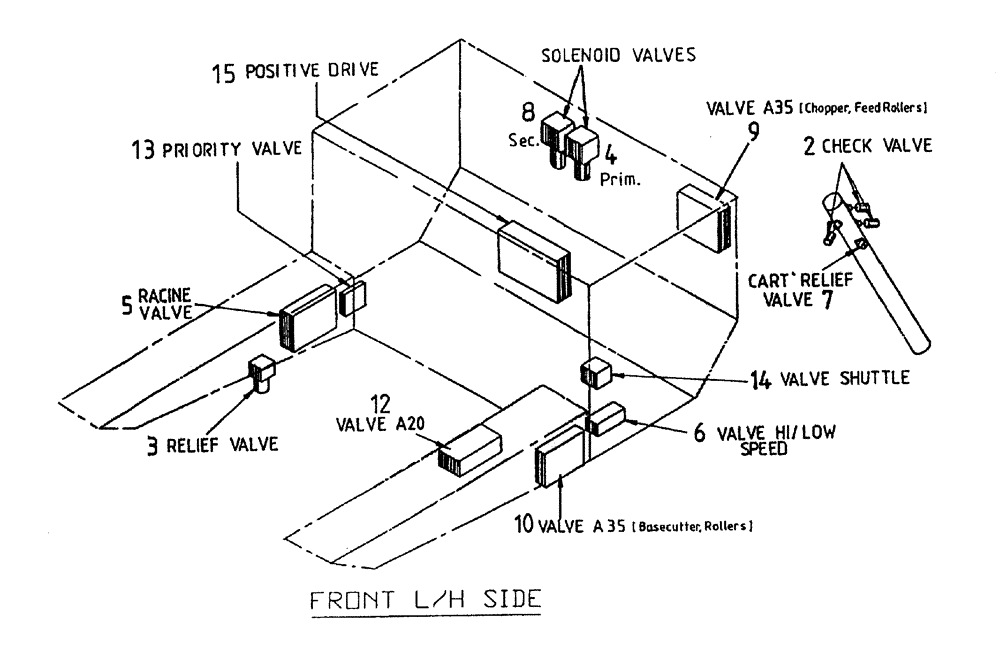

Запчасти Case IH 7000 (B00-25) - HYDRAULIC VALVES (7000), UP TO AND INCLUDING SERIAL #7907 Hydraulic Components & Circuits

2

HYDRAULIC CHECK VALVE (Refer Figure B04-50)

1шт.

3

HYDRAULIC RELIEF VALVE (Refer Figure B04-65)

1шт.

4

HYDRAULIC RELIEF VALVE (Refer Figure B04-55)

1шт.

5

HYDRAULIC RACINE VALVE (Refer Figure B04-20)

1шт.

6

HYDRAULIC VALVE (Refer Figure B04-25)

1шт.

7

HYDRAULIC RELIEF VALVE (Refer Figure B04-70)

1шт.

8

HYDRAULIC RELIEF VALVE (Refer Figure B04-55)

1шт.

9

HYDRAULIC VALVE (Refer Figure B04-10)

1шт.

10

HYDRAULIC VALVE (Refer Figure B04-15)

1шт.

12

HYDRAULIC VALVE (Refer Figure B04-00)

1шт.

12

HYDRAULIC VALVE (Refer Figure B04-05)

1шт.

13

HYDRAULIC PRIORITY VALVE (Refer Figure B04-35)

1шт.

14

HYDRAULIC SHUTTLE VALVE (Refer Figure B04-40)

1шт.

15

HYDRAULIC VALVE (Refer Figure B04-30)

1шт.
