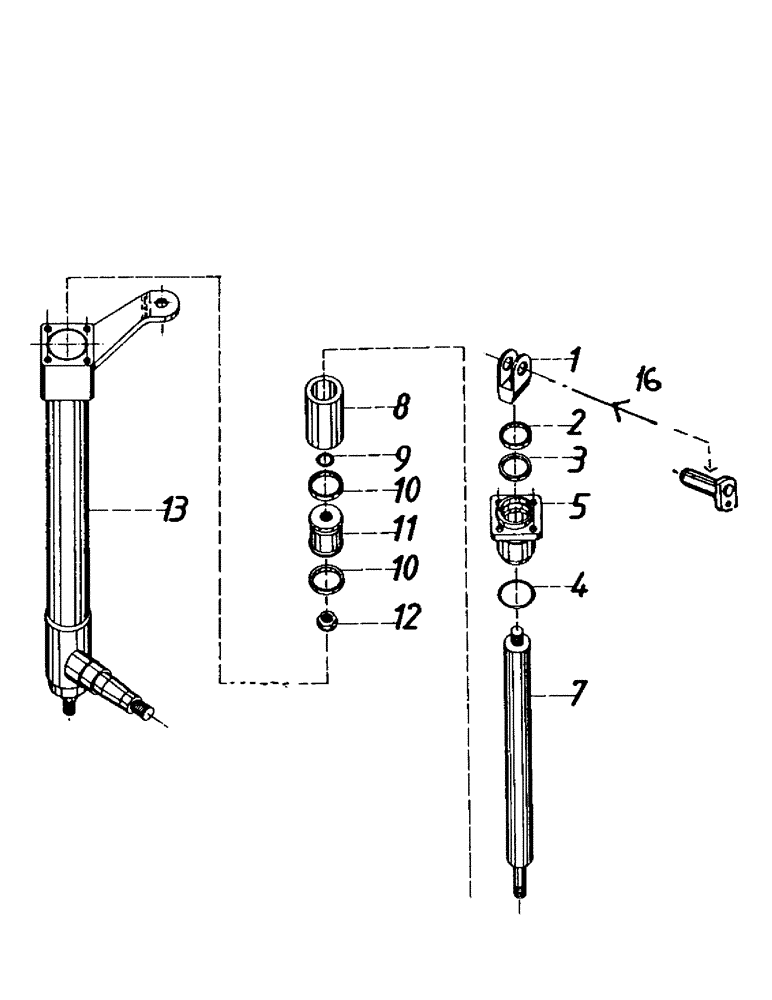

Запчасти Case IH 7000 (B01-14) - HYDRAULICS, CYLINDER, BASECUTTER LIFT, 7000 Hydraulic Components & Circuits

1

00607380

PIN

1шт.

1

86786800

CLEVIS

1шт.

2

00100719

SEAL

1шт.

3

00100718

OIL SEAL

SEAL

1шт.

4

00100112

O-RING

1шт.

5

87213959

WELDED END

BOSS

1шт.

5

00604535

SCREW

CAP SCREW

1шт.

7

86854500

SHAFT,57.15mm OD x 710mm L

ROD

1шт.

8

86854200

SPACER,57.35mm ID x 69.85mm OD x 100mm L

1шт.

9

00100019

O-RING

1шт.

10

00100710

WIPER SEAL

SEAL

2шт.

11

86742100

CYLINDER,76.08mm Bore, 26.44mm Rod, 60mm W

PISTON

1шт.

12

00607919

LOCK NUT

NUT

1шт.

13

87223520

CYLINDER

(LH) (Welded Assembly)

1шт.

13

87223524

CYLINDER

(RH) (Welded Assembly)

1шт.

87223522

STUB AXLE/STEERING S

SUIT 87223520 & 87223524

1шт.

14

87223523

CYLINDER

ASSEMBLY (RH)

1шт.

14

87223519

CYLINDER

ASSEMBLY (LH)

1шт.

15

87214368

SEAL KIT

1шт.

16

86788000

PIN,25.4mm OD x 75mm L

1шт.
