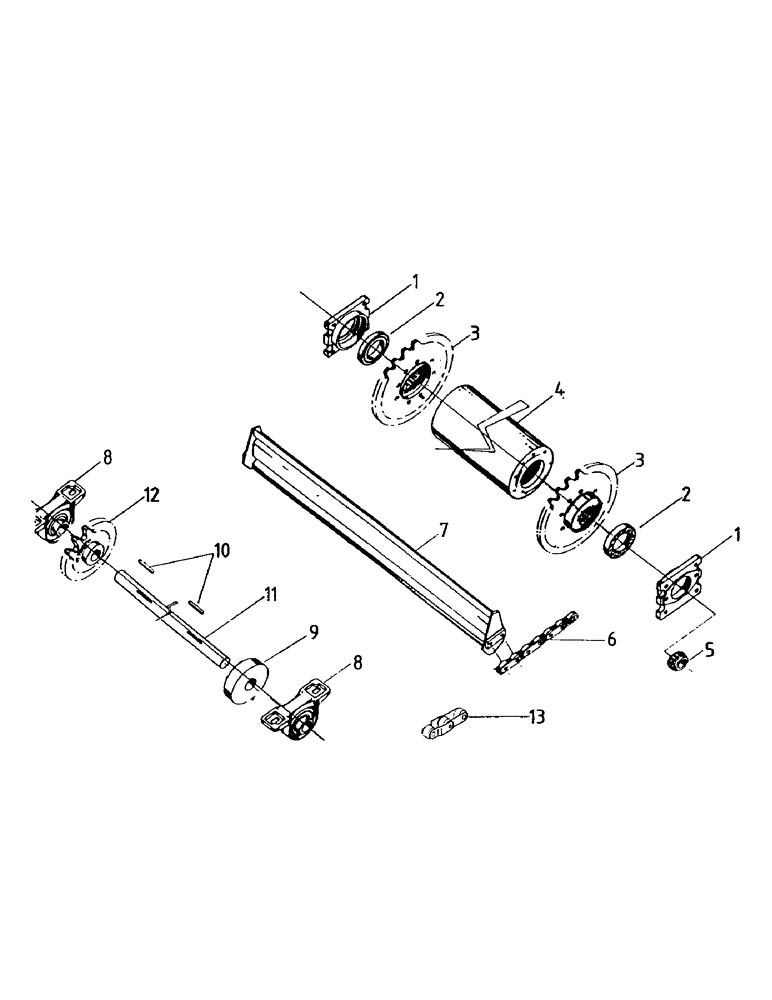

Запчасти Case IH 7000 (A02-40) - MAINFRAME, ELEVATOR DRIVE Mainframe & Functioning Components

1

87213269

HOUSING, BEARING,68 mm ID x 120 mm OD x 35, 12 mm

HOUSING

2шт.

1

00606755

BOLT

8шт.

1

00605829

WASHER

8шт.

1

00132752

LUBE NIPPLE

NIPPLE (grease)

1шт.

2

00144060

BALL BEARING

BEARING

2шт.

3

87213240

SHAFT ASSY.

SPROCKET

2шт.

3

00601506

BOLT

16шт.

4

87213267

ROLLER,150mm OD x 892mm L

SHAFT

1шт.

5

87186801

SPLINED COUPLING

COUPLING (up to and including 7571)

2шт.

5

87223439

ASSEMBLY

COUPLING (7572 on)

2шт.

6

86734900

ELEVATOR CHAIN

CHAIN (short E)

2шт.

6

87058600

ASSEMBLY

CHAIN (long E)

2шт.

7

87229517

ASSEMBLY

FLIGHT (short E)

20шт.

7

87229517

ASSEMBLY

FLIGHT (long E)

21шт.

7

00601606

BOLT

84шт.

7

00606013

LOCK NUT

NUT

84шт.

8

00140831

BEARING

2шт.

8

00601523

BOLT

4шт.

8

00605810

WASHER

4шт.

8

00605829

WASHER

4шт.

8

00605797

NUT

4шт.

9

86719900

SPROCKET ASSY.

IDLER

1шт.

10

83061800

SPARE PART

2шт.

11

86719700

SHAFT

1шт.

12

86719800

SPROCKET ASSY.

SPROCKET

1шт.

12

00605130

SCREW

GRUB SCREW

1шт.

13

00700162

CONNECTING LINK

HALF LINK

1шт.
