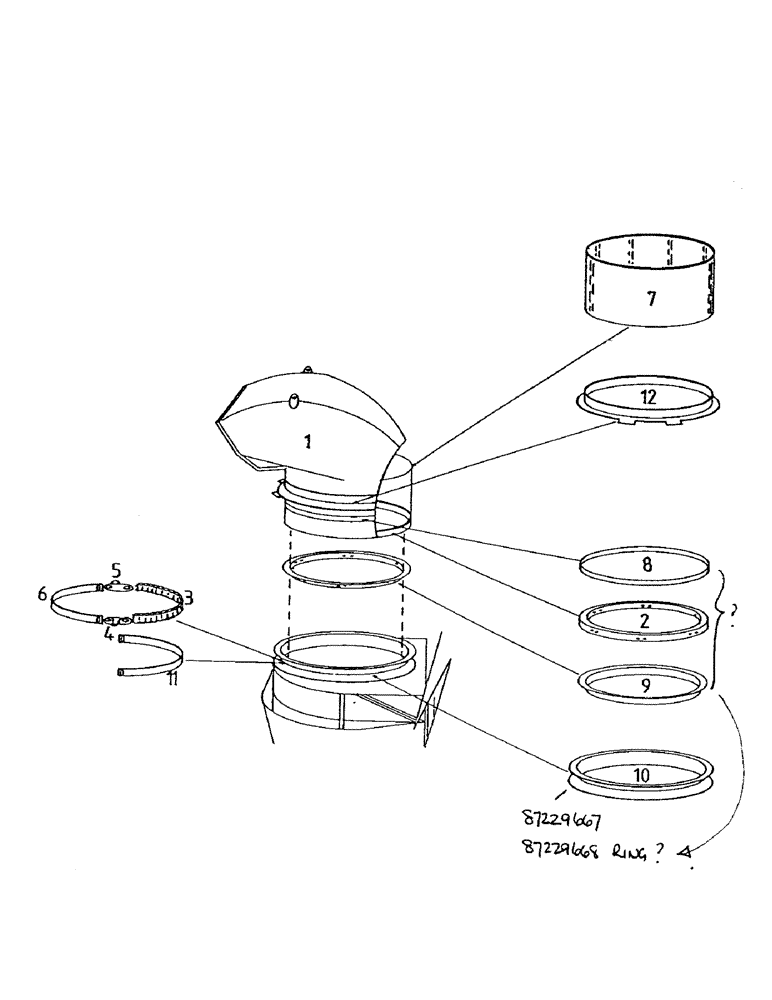

Запчасти Case IH 7000 (A02-35) - MAINFRAME, PRIMARY EXTRACTOR SHROUD Mainframe & Functioning Components

1

87229664

ASSEMBLY

HOOD (heavy)

1шт.

1

87215116

SPARE PART

KIT (panel)

1шт.

2

86964100

MOUNTING PARTS

RING (doubler)

1шт.

2

00605374

SCREW

8шт.

2

00605794

NUT

8шт.

2

00605826

WASHER

8шт.

3

86799400

CHAIN

1шт.

4

86795600

SLEWING RING

SUPPORT (RH)

1шт.

4

82085300

PIN,19.18mm OD x 60.32mm L

1шт.

4

87213359

ASSEMBLY

ROLLER (with bush)

1шт.

4

87213384

WASHER

(sideplate)

2шт.

5

86795500

CONNECTING LINK

SUPPORT (LH)

1шт.

5

82085300

PIN,19.18mm OD x 60.32mm L

1шт.

6

86796500

STRAP

1шт.

7

87229670

LINER

1шт.

8

86720900

WEAR STRIP

RING

1шт.

9

86721500

MOUNTING PARTS

RING

1шт.

10

86732200

RING

(slew)

1шт.

11

87219782

STAY

STRAP (safety)

1шт.

11

FA112020

BOLT

2шт.

11

FA112025

BOLT

2шт.

11

WB120000

WASHER

4шт.

12

86720700

MOUNTING PARTS

RING ANGLE

1шт.
