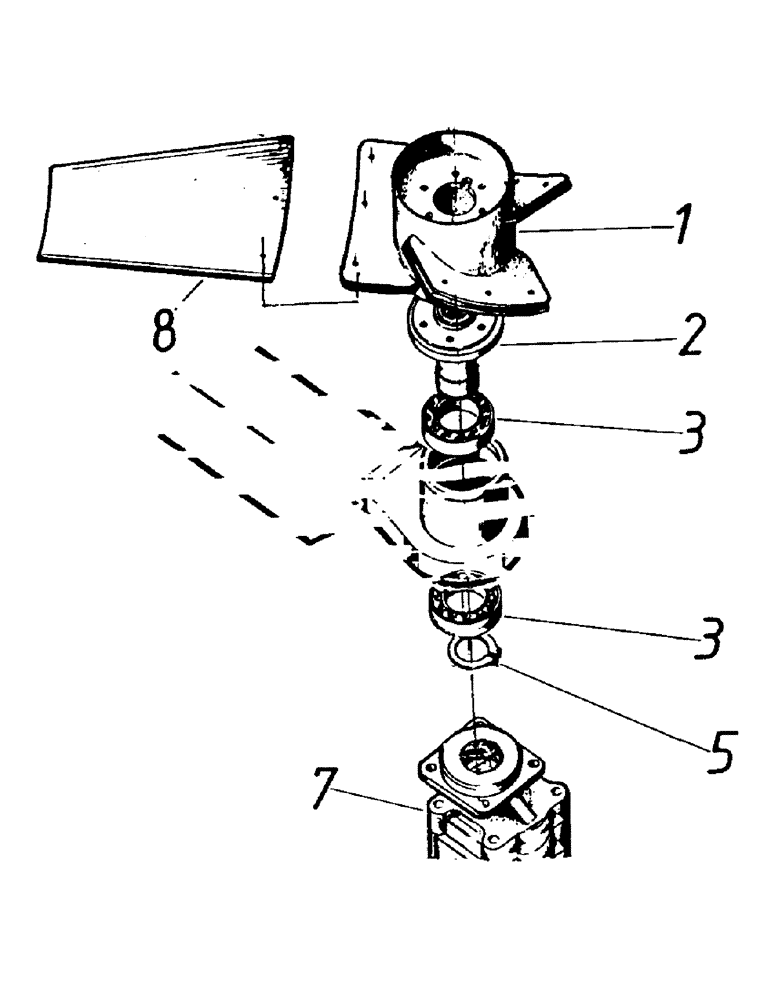

Запчасти Case IH 7000 (A02-31) - MAINFRAME, SECONDARY EXTRACTOR FAN Mainframe & Functioning Components

1

87224942

HUB ASSY.

HUB

1шт.

1

00601499

BOLT

6шт.

1

00605827

WASHER

6шт.

2

86304126

SPLINED COUPLING

COUPLING

1шт.

2

00132819

PLUG

1шт.

3

00140309

BALL BEARING

BEARING

2шт.

5

CE055000

CIRCLIP

1шт.

7

00601511

BOLT

4шт.

7

00605829

WASHER

4шт.

8

87214922

SET OF BLADES

BLADE SET (unpainted)

1шт.

8

86642000

ASSEMBLY

BLADE SET (painted)

1шт.

8

00601579

BOLT

9шт.

8

00605803

NUT

9шт.

8

00605829

WASHER

9шт.

8

87213878

ASSEMBLY

BLADE (option) (long life - unpainted)

1шт.

8

87214924

ASSEMBLY

BLADE (option) (long life - painted)

1шт.

10

86642200

FAN

ASSEMBLY (standard) #1 and 8

1шт.
