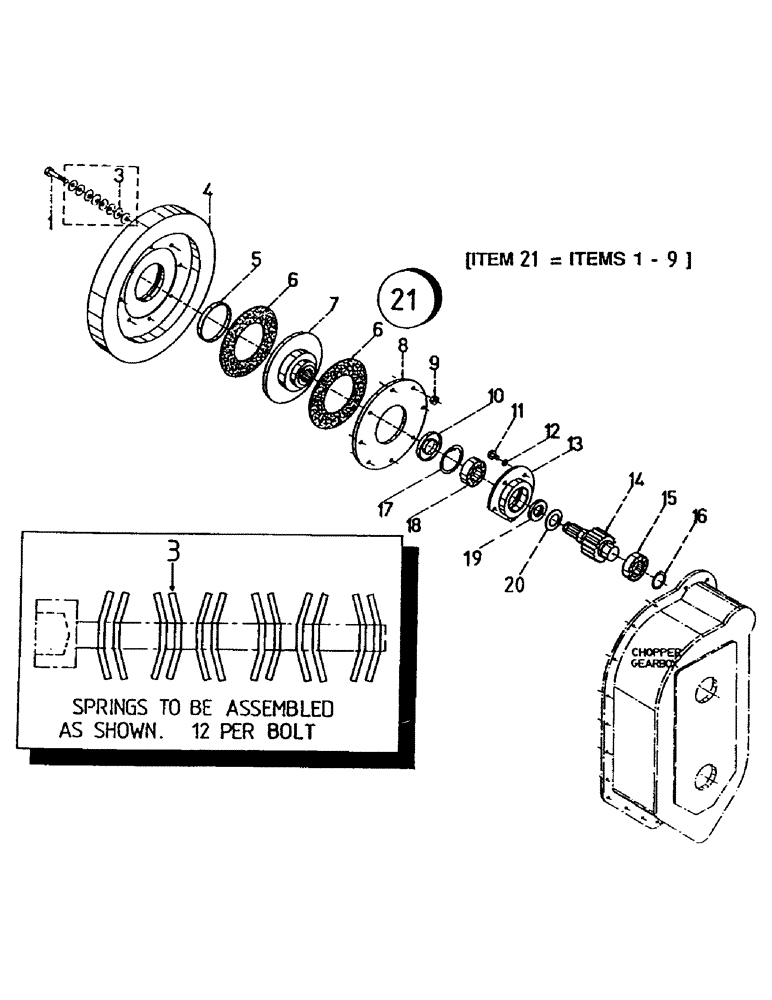

Запчасти Case IH 7000 (A02-21) - MAINFRAME, FLYWHEEL ROTARY CHOPPER & GEARBOX (Mar 19 2004 9:59AM) Mainframe & Functioning Components

1

FC112065

SCREW,M12 x 1.75 x 65mm

BOLT

8шт.

3

00130076

WASHER

SPRING

96шт.

4

87220478

FLYWHEEL

1шт.

5

87220477

BRONZE BUSHING,116.15mm ID x 126.15mm OD x 12mm L

BUSH

1шт.

6

87220475

SHIM,125mm ID x 220mm OD x 5.15mm Thk

2шт.

7

87220479

ADAPTER

ADAPTOR

1шт.

8

87220476

CLUTCH, PRESSURE PLA

PLATE

1шт.

9

NA112000

NUT

8шт.

10

00100717

OIL SEAL

SEAL

1шт.

11

FA112025

BOLT

6шт.

12

WB120000

WASHER

6шт.

13

87217721

BEARING HOUSING,90 mm ID x 110.06 mm OD x 60 mm

HOUSING

1шт.

14

87217726

GEAR

PINION

1шт.

15

00144101

BEARING

1шт.

16

CE055000

CIRCLIP

1шт.

17

CI100000

CIRCLIP

1шт.

18

00140425

BEARING

1шт.

19

00141225

NUT

1шт.

20

87229334

WASHER,46mm ID x 75mm OD x 4.37mm Thk

1шт.

21

87220481

FLYWHEEL

#1 TO 9 INCLUSIVE

1шт.
