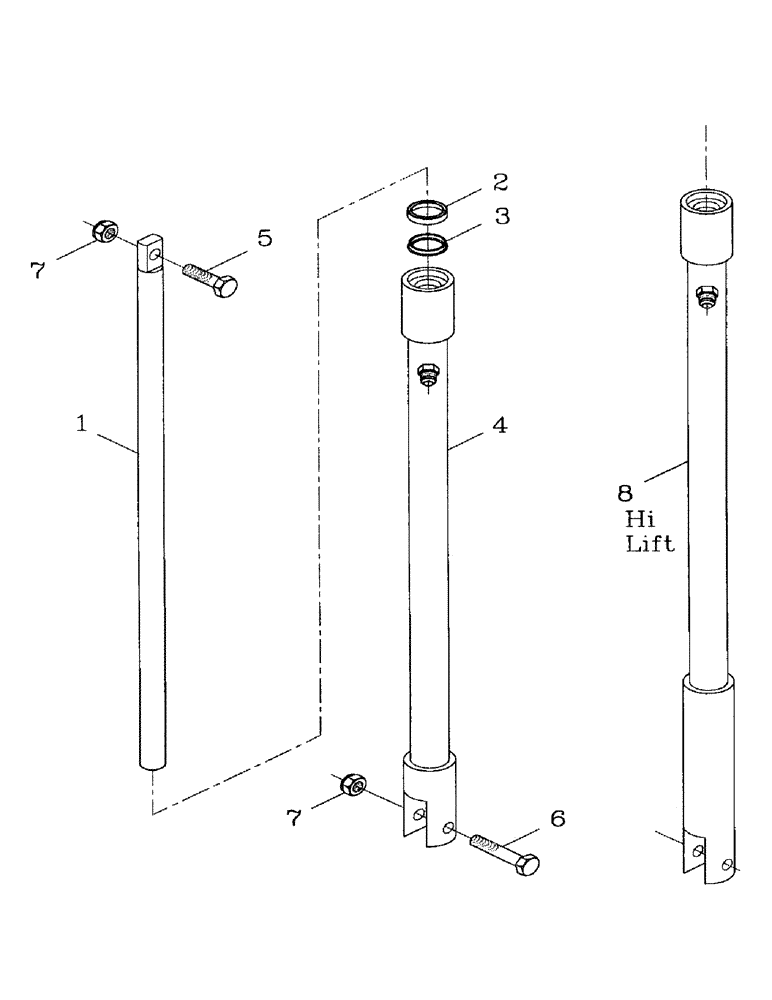

Запчасти Case IH 7000 (B02-12) - HYDRAULIC CYLINDER, HEIGHT INDICATOR, 7700 Hydraulic Components & Circuits

1

87237350

SHAFT,22.23mm OD x 692mm L

ROD

1шт.

2

00100552

OIL SEAL

SEAL

1шт.

3

00100759

OIL SEAL

SEAL

1шт.

4

87250161

CYLINDER ASSY.

BARREL [LH]

1шт.

4

87250162

CYLINDER ASSY.,25mm Bore Dia

BARREL [RH]

1шт.

5

FM112045

BOLT

1шт.

6

FM112060

BOLT

1шт.

7

NC112000

NUT

NUT

2шт.

8

87249481

BARREL

[LH] [Hi Lift]

1шт.

8

87252452

BARREL

[RH] [Hi Lift]

1шт.

9

87250159

INDICATOR

ASSEMBLY [LH]

1шт.

9

87249480

HYDRAULIC CYLINDER

ASSEMBLY [LH] [Hi Lift]

1шт.

10

87250160

HYDRAULIC CYLINDER

ASSEMBLY [RH]

1шт.

10

87252451

HYDRAULIC CYLINDER

ASSEMBLY [RH] [Hi Lift]

1шт.
