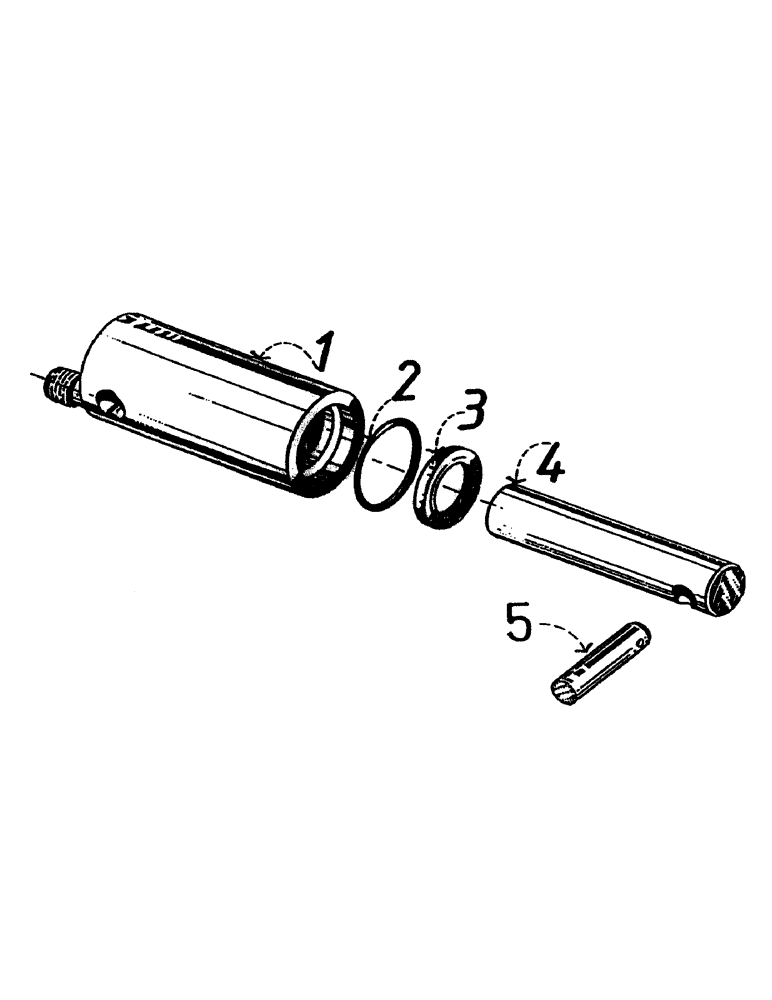

Запчасти Case IH 7000 (B02-05) - HYDRAULIC CYLINDER, HEIGHT INDICATOR, 7000 Hydraulic Components & Circuits

1

87024400

CYLINDER

BARREL

1шт.

2

00100023

O-RING

1шт.

3

00100675

SEAL

WIPER

1шт.

4

83156102

INDICATOR,31.75mm OD x 128mm L

RAM

1шт.

5

86981600

PIN,12mm OD x 49mm L

1шт.

6

87214847

HYDRAULIC CYLINDER,31.75mm Rod, 80mm Stroke

ASSEMBLY [Excluding Pin]

1шт.
