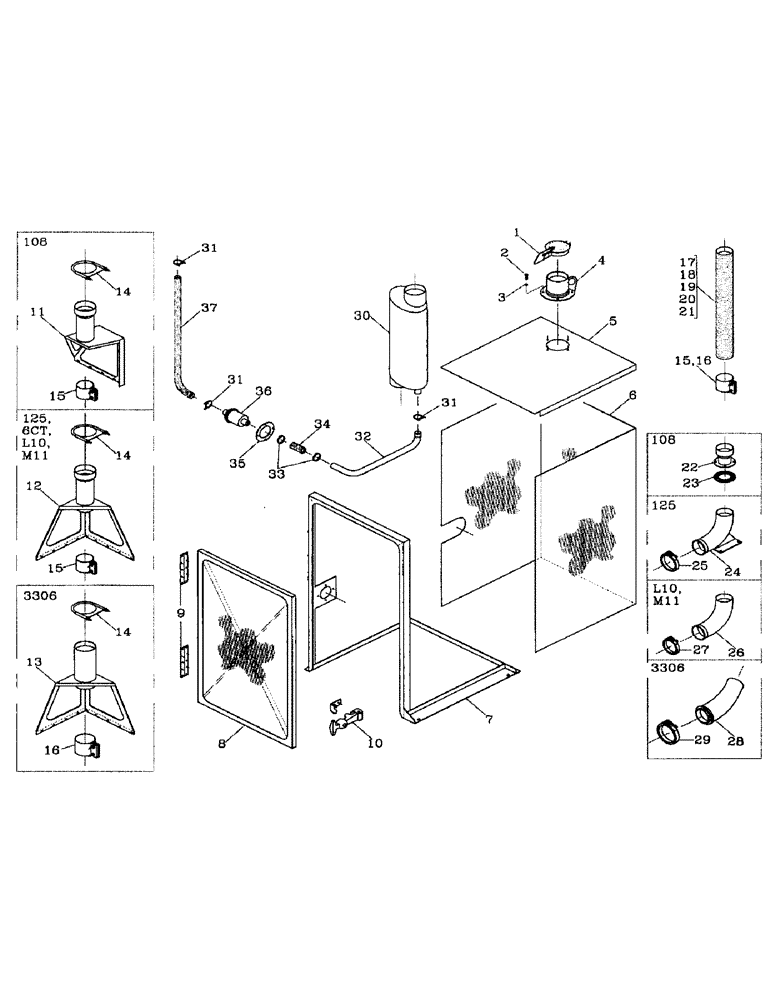

Запчасти Case IH 7000 (C03-04) - AIR INLET SCREEN AND EXHAUST Engine & Engine Attachments

1

00181056

EXHAUST SYSTEM PIPE

CAP

1шт.

2

FA110016

BOLT

4шт.

3

WB100000

WASHER

4шт.

4

87240654

EXTENSION

1шт.

5

87251503

GUARD

TOP [Standard Screen]

1шт.

5

87253219

TOP [Low Screen]

1шт.

6

87251506

MESH

[Standard Screen]

1шт.

6

87244454

MESH [Low Screen]

1шт.

7

87242074

FRAME ASSY

BASE [Standard Screen]

1шт.

7

87244455

BASE [Low Screen]

1шт.

8

87240662

DOOR ASSY.

DOOR [Standard Screen]

1шт.

8

87244453

DOOR [Low Screen]

1шт.

9

87240652

HINGE

2шт.

10

00139549

LATCH

2шт.

11

87253244

BRACKET

MOUNT [108]

1шт.

12

87251517

BRACKET

MOUNT [125/6CT/L10/M11]

1шт.

13

87251691

MOUNTING PARTS

MOUNT [3306] [Standard Screen]

1шт.

13

87252585

MOUNT [3306] [Low Screen]

1шт.

14

00180345

CLAMP

1шт.

15

00181118

CLAMP

[108/125/6CT/L10/M11]

2шт.

16

00181150

CLAMP

[3306]

2шт.

17

87242250

EXHAUST SYSTEM PIPE

FLEX TUBE [108]

1шт.

18

87242237

EXHAUST SYSTEM PIPE

FLEX TUBE [125]

1шт.

19

87244045

EXHAUST SYSTEM PIPE

FLEX TUBE [6CT]

1шт.

20

87242249

EXHAUST SYSTEM PIPE

FLEX TUBE [L10/M11]

1шт.

21

87242539

EXHAUST SYSTEM PIPE

FLEX TUBE [3306]

1шт.

22

87242226

ADAPTER

ADAPTOR [108]

1шт.

23

87213333

GASKET

[108]

1шт.

24

87242231

TUBE

ADAPTOR [125]

1шт.

25

00181161

CLAMP

[125]

1шт.

26

00180560

HYD CONNECTOR

ADAPTOR [L10/M11]

1шт.

27

00181711

CLAMP

[L10/M11]

1шт.

28

87242641

EXHAUST SYSTEM PIPE

ADAPTOR [3306]

1шт.

29

00181710

CLAMP

[3306]

1шт.

30

00181978

MUFFLER

1шт.

31

00180344

MUFFLER

CLAMP

3шт.

32

87251518

TUBE,38.10 mm ID

1шт.

33

00181182

HOSE CLAMP

CLAMP

2шт.

34

87235399

HOSE,38.10 mm ID x 100.00 mm

38.10 mm ID x 100.00 mm

1шт.

35

87251505

FLANGE

1шт.

36

00181996

CHECK VALVE

1шт.

37

87251756

TUBE

FLEX TUBE [Standard Screen]

1шт.

37

87252591

FLEX TUBE [Low Screen]

1шт.
