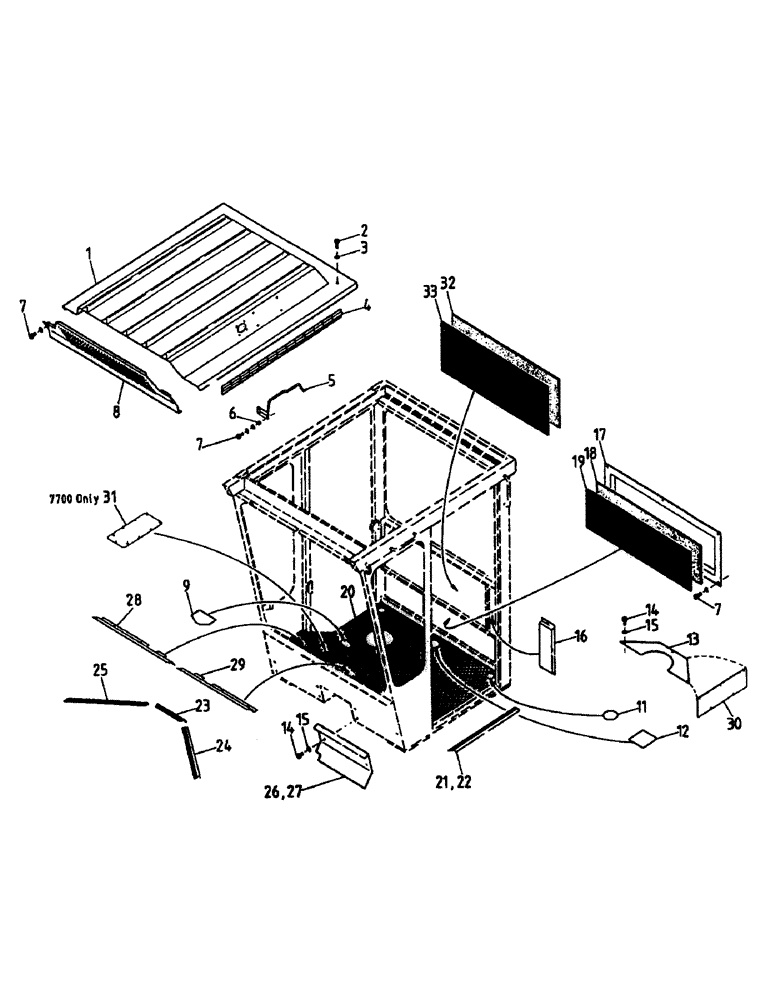

Запчасти Case IH 7000 (A11-02) - HOOD, COVERS, INSULATION AND MATS Mainframe & Functioning Components

1

87017100

CAB

HOOD

1шт.

2

00608169

SCREW

2шт.

3

00180407

MOUNTING PARTS

WASHER

2шт.

4

87017600

HINGE,M6 x 30

1шт.

5

87217143

STAY

1шт.

6

86310498

SLEEVE

SPACER

2шт.

7

FM110020

BOLT

8шт.

8

87238904

GUARD

1шт.

9

87239746

COVER

[Reservoir]

1шт.

11

87240847

COVER

[Mount]

4шт.

12

87232466

COVER PLATE

COVER [Fuel Sender]

1шт.

13

87237866

COVER ASSY

COVER

1шт.

14

FM108020

BOLT

11шт.

15

WB080000

WASHER

11шт.

16

87246287

COVER

1шт.

17

87025300

PLUG

PANEL

1шт.

18

87242696

FOAM INSULATION

BACKING

1шт.

19

87215637

FOAM INSULATION

INSULATION

1шт.

20

87252040

CAB FLOOR

MAT [FRONT]

1шт.

20

87252041

CAB FLOOR

MAT [REAR]

1шт.

21

87239295

DOOR SILL MOULDING

TRIM [LH]

1шт.

22

87239294

DOOR SILL MOULDING

TRIM [RH]

1шт.

23

87239293

DOOR SILL MOULDING

TRIM

1шт.

24

87239292

DOOR SILL MOULDING

TRIM [LH]

1шт.

25

87239291

DOOR SILL MOULDING

TRIM [RH]

1шт.

26

87247254

PANEL

SPOILER [LH]

1шт.

27

87247255

PANEL

SPOILER [RH]

1шт.

28

87246285

PLATE

PROTECTOR

1шт.

29

87247272

PLATE

PROTECTOR

1шт.

30

87248242

COVER ASSY

COVER

1шт.

31

87247681

COVER

1шт.

32

87248244

FOAM INSULATION

BACKING

1шт.

33

87248245

FOAM INSULATION

INSULATION

1шт.
