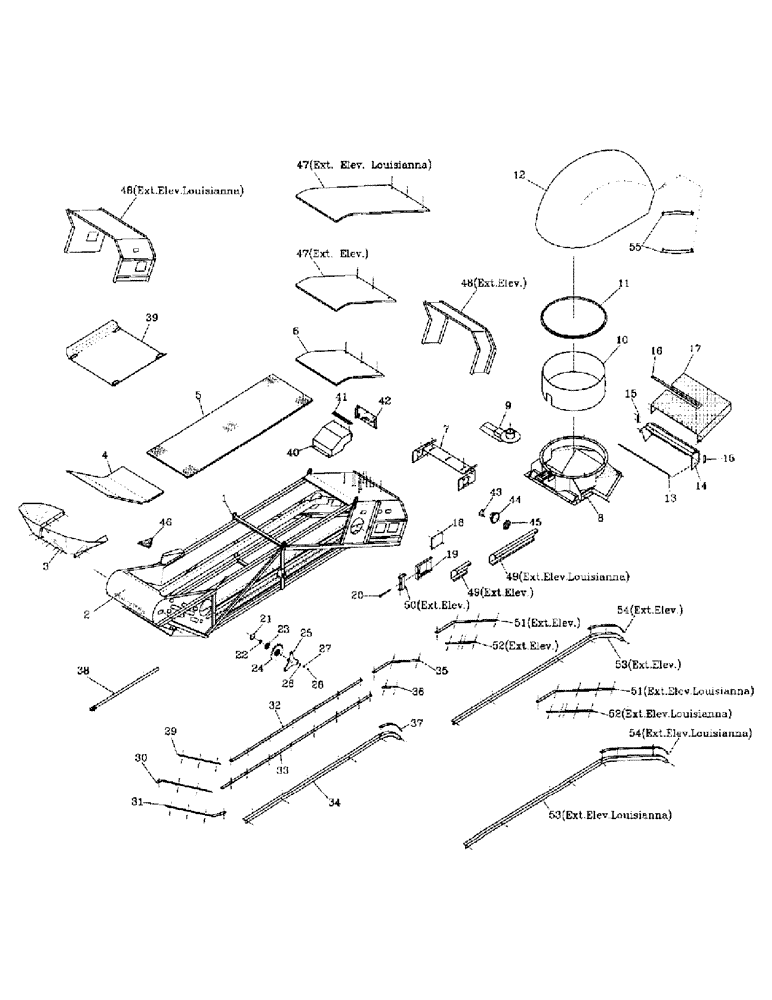

Запчасти Case IH 7000 (A08-03) - ELEVATOR Mainframe & Functioning Components

1

87242800

ELEVATOR

1шт.

2

87242838

BOOT

1шт.

3

87242856

HOPPER

BOWL

1шт.

3

FA110025

BOLT

10шт.

3

WA100000

WASHER

16шт.

3

WB100000

WASHER

22шт.

3

NA110000

NUT

06шт.

3

FL110025

SCREW,Btn Skt Hd, M10 x 1.5 x 25mm

06шт.

4

87248997

FLOOR

[LOWER]

1шт.

5

87250041

FLOOR

[MIDDLE]

1шт.

6

87237118

FLOOR

[UPPER - Standard Elevator]

1шт.

7

87237067

FLOOR

ADJUSTABLE FLOOR

1шт.

8

87241694

HOOD

EXTRACTOR

1шт.

9

87241702

SUPPORTING ARM

ARM

1шт.

10

87241695

WEAR STRIP

RING

1шт.

11

86569800

RING

RING

1шт.

12

87250122

HOOD

1шт.

13

86937500

ROD,12mm OD x 1032mm L

1шт.

14

87229056

FLAP

BIN FLAP

1шт.

15

87229054

STRIP,25mm W x 130mm L x 5.2mm Thk

2шт.

16

87229053

STRIP,25.4mm W x 940mm L

1шт.

17

87229055

RUBBER

1шт.

18

87237319

COVER PLATE

BLANKING PLATE

2шт.

19

87214036

PLATE

DOUBLER PLATE

2шт.

20

87250283

BOLT,180mm L

SCREW

2шт.

21

CI080000

CIRCLIP

4шт.

22

CE040000

CIRCLIP

4шт.

23

00144081

BALL BEARING

BEARING

4шт.

24

87242847

SPROCKET

4шт.

25

87250979

BRACKET

STUB SHAFT

4шт.

26

87249196

WASHER

12шт.

27

WA120000

WASHER

12шт.

28

NA120000

NUT

12шт.

29

87243873

WEAR STRIP,40mm W x 803mm L

2шт.

30

87235158

WEAR STRIP

2шт.

31

87237313

WEAR STRIP

2шт.

32

87243874

WEAR STRIP

2шт.

33

87242851

WEAR STRIP

2шт.

34

87237315

WEAR STRIP

[LH-Standard Elevator]

1шт.

34

87237316

WEAR STRIP

[RH-Standard Elevator]

1шт.

35

87227544

WEAR STRIP

2шт.

36

87242850

WEAR STRIP

2шт.

37

87235298

WEAR STRIP

[LH-Standard Elevator]

1шт.

37

87235297

WEAR STRIP

[RH-Standard Elevator]

1шт.

38

87236365

STAY

SAFETY STAY

2шт.

39

87239360

GUARD ASSY.

BIN GUARD

1шт.

40

87246719

COVER

1шт.

41

87246787

HINGE

1шт.

42

87246718

COVER PLATE

MOUNT

1шт.

43

87242841

MOUNTING PARTS

BRACKET

2шт.

44

00134262

BODY

2шт.

45

00134264

LAMP

BEAM

2шт.

46

87241776

RUBBER

2шт.

47

87249502

FLOOR

[UPPER] (Louisiana)

1шт.

48

87249521

EXTENSION

[Extended Elevator]

1шт.

49

87249507

SPACER

[LH] (Louisiana)

1шт.

49

87249509

SPACER

[RH] (Louisiana)

1шт.

50

87250281

BEAM

STIFFENER [Extended Elevator]

2шт.

51

87249512

WEAR STRIP

[Extended Elevator]

2шт.

52

87249519

WEAR STRIP

[Extended Elevator]

2шт.

53

87249513

WEAR STRIP

[LH - Extended Elevator]

1шт.

53

87249515

WEAR STRIP

[RH - Extended Elevator]

1шт.

54

87249517

WEAR STRIP

[LH - Extended Elevator]

1шт.

54

87249518

WEAR STRIP

[RH - Extended Elevator]

2шт.

55

87250294

MOUNTING PARTS

STRIP

6шт.
