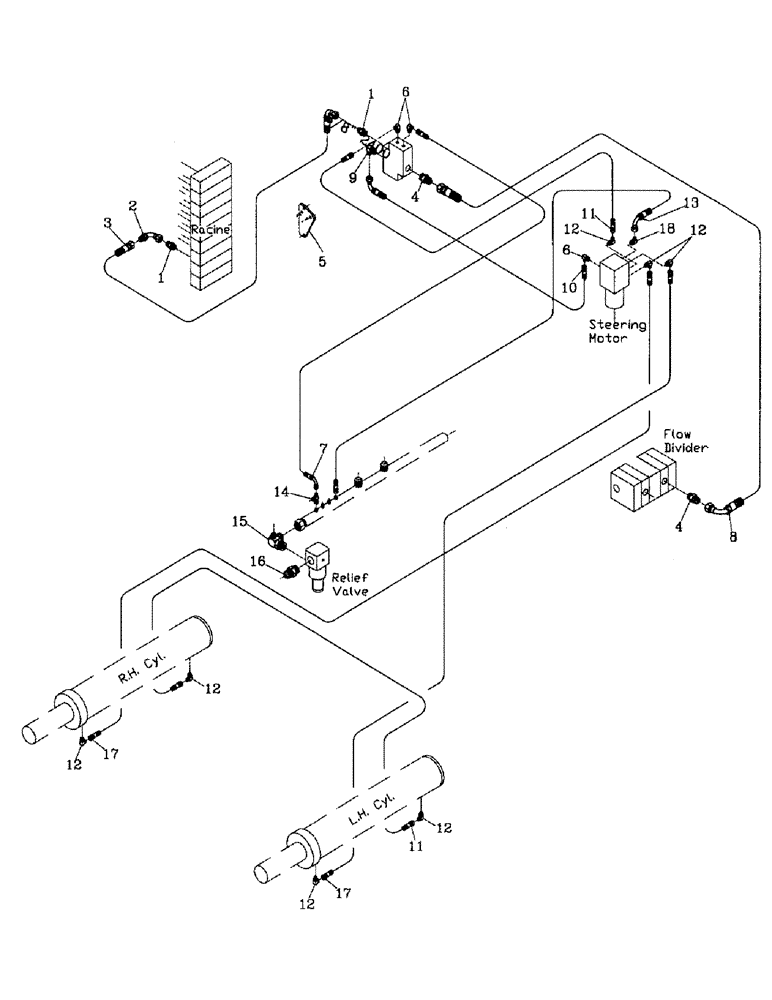

Запчасти Case IH 7000 (B06-27) - HYDRAULIC CIRCUIT, STEERING, 7000 Hydraulic Components & Circuits

1

00400230

HYD CONNECTOR

NIPPLE

2шт.

2

00407516

HYD CONNECTOR

BEND

1шт.

3

86309806

HOSE,12.7mm ID x 830mm L, SAE 100R16

1шт.

4

00400231

HYD CONNECTOR

NIPPLE

2шт.

5

87251879

MOUNTING PARTS

MOUNT

1шт.

6

00405242

HYD CONNECTOR

ELBOW

3шт.

7

86310227

HOSE ASSY.

HOSE

1шт.

8

86308256

HOSE

1шт.

9

00400241

HYD CONNECTOR

ELBOW

1шт.

10

87225564

HOSE

1шт.

11

87247522

HOSE ASSY.,6.35mm ID x 2170mm L, SAE 100R17

HOSE

2шт.

12

00402475

HYD CONNECTOR

ELBOW

7шт.

13

87252212

HOSE

1шт.

14

00404677

TEE

1шт.

15

86310816

HYD CONNECTOR

ELBOW

1шт.

16

00400234

HYD CONNECTOR

NIPPLE

1шт.

17

86307398

HOSE

HYDRAULIC HOSE

2шт.

18

00400240

HYD CONNECTOR

ELBOW

1шт.
