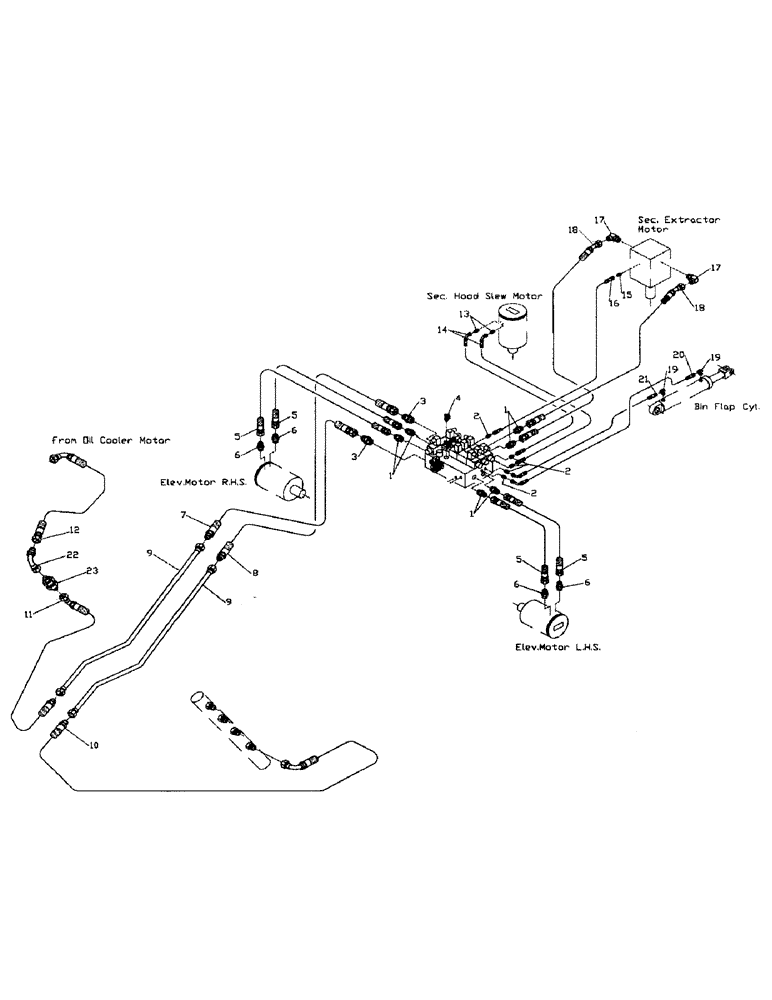

Запчасти Case IH 7000 (B06-21) - HYDRAULIC CIRCUIT, ELEVATOR Hydraulic Components & Circuits

1

00400231

HYD CONNECTOR

NIPPLE

6шт.

2

00400223

HYD CONNECTOR

NIPPLE

5шт.

3

00400234

HYD CONNECTOR

NIPPLE

2шт.

4

00405498

SCREW ON COUPLING

TEST POINT

1шт.

5

87222022

HYDRAULIC HOSE

[Standard Elevator]

4шт.

5

82701900

HOSE [Extended Elevator] (Louisiana)

4шт.

6

00400229

HYD CONNECTOR

NIPPLE

4шт.

7

87250079

HOSE ASSY.

HOSE

1шт.

8

87250080

HOSE

1шт.

9

87247175

TUBE,25.40 mm OD

2шт.

10

87247906

HOSE ASSY.

HOSE

1шт.

11

87252188

HOSE ASSY.

HOSE

1шт.

12

82765500

HOSE,25.4mm ID x 2130mm L, SAE 100R16

1шт.

13

00400074

HYD CONNECTOR

NIPPLE

2шт.

14

82743100

HOSE,6.35mm ID x 350mm L, SAE 100R17

[Standard Elevator]

2шт.

14

82742800

HOSE

Extended Elevator

2шт.

14

86308613

HOSE (Louisiana)

2шт.

15

00400162

HYD CONNECTOR

NIPPLE

1шт.

16

86493600

HOSE,6.35mm ID x 1420mm L, SAE 100R17

[Standard Elevator]

1шт.

16

82713500

HOSE ASSY.

HOSE [Extended Elevator]

1шт.

16

87247522

HOSE ASSY.,6.35mm ID x 2170mm L, SAE 100R17

HOSE (Louisiana)

1шт.

17

00400246

HYD CONNECTOR

ELBOW

2шт.

18

82762800

HOSE

Standard Elevator

2шт.

18

87236502

HOSE ASSY.

HOSE [Extended Elevator]

2шт.

18

87235711

HOSE ASSY.

HOSE (Louisiana)

2шт.

19

00402879

HYD CONNECTOR

ELBOW

2шт.

20

87216961

HOSE

[Standard Elevator]

1шт.

20

87238682

ASSEMBLY

HOSE [Extended Elevator]

1шт.

20

87252509

HOSE (Louisiana)

1шт.

21

84004000

HOSE,6.35mm ID x 1670mm L, SAE 100R17

[Standard Elevator]

1шт.

21

86312482

HOSE ASSY.

HOSE [Extended Elevator]

1шт.

21

87038500

HOSE

(Louisiana)

1шт.

22

00403944

HYD CONNECTOR

BEND

1шт.

23

00400067

HYD CONNECTOR

NIPPLE

1шт.
