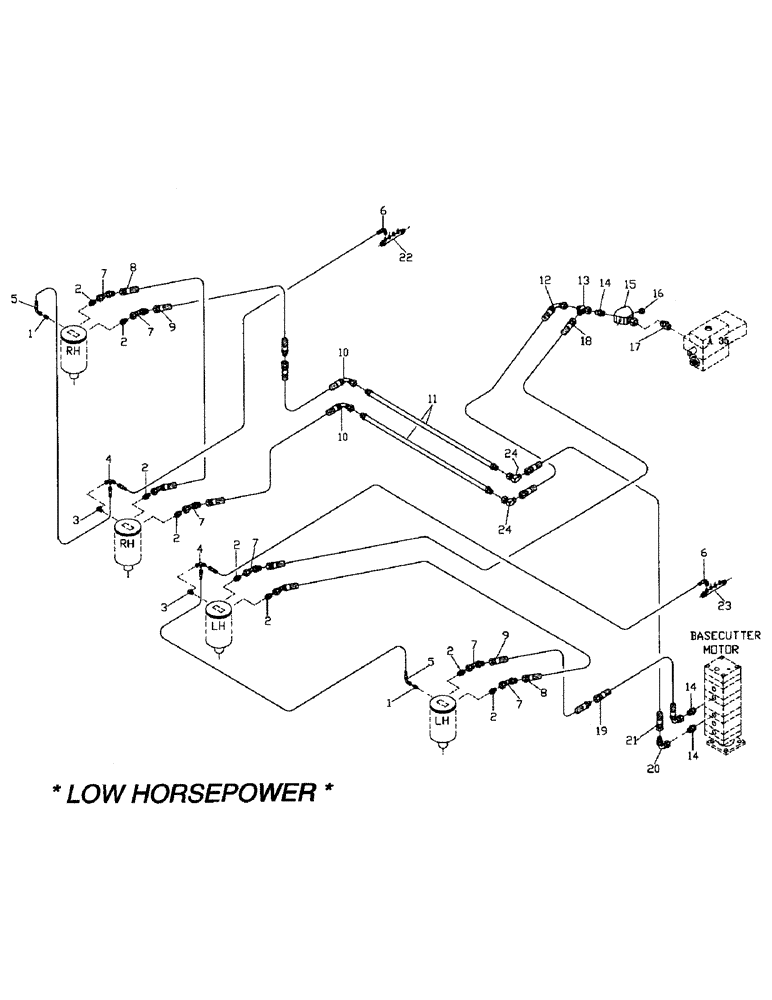

Запчасти Case IH 7000 (B06-19) - HYDRAULIC CIRCUIT, CROPDIVIDER SPIRALS Hydraulic Components & Circuits

1

00402235

HYD CONNECTOR

NIPPLE

1шт.

2

00400229

HYD CONNECTOR

NIPPLE

8шт.

3

00405242

HYD CONNECTOR

ELBOW

2шт.

4

87219738

ADAPTER

ADAPTOR

2шт.

5

87217477

HOSE ASSY.

HOSE

2шт.

6

86315420

HOSE ASSY.

HOSE

2шт.

7

00408418

HYD CONNECTOR

BEND

6шт.

8

86332900

ANGLE

HOSE

2шт.

9

87235868

TUBE

HOSE

2шт.

10

87225554

HOSE

HYDRAULIC HOSE

2шт.

11

87235204

TUBE,25.40 mm OD x 1162 mm L

2шт.

12

86311426

HOSE ASSY.

HOSE

1шт.

13

00404678

TEE

1шт.

14

00400231

HYD CONNECTOR

NIPPLE

3шт.

15

87247876

ADAPTER

Y BLOCK

1шт.

16

00400256

PLUG

1шт.

17

00400234

HYD CONNECTOR

NIPPLE

1шт.

18

87235874

HOSE,19.05mm ID x 2310mm L, SAE 100R16

19.00 mm ID x 2310.00 mm, SAE 100R16

1шт.

19

87218997

HOSE ASSY.

HOSE

1шт.

20

00407045

HYD CONNECTOR

BEND

1шт.

21

86311426

HOSE ASSY.

HOSE

1шт.

22

87165700

VENT MANIFOLD

MANIFOLD [RH]

1шт.

23

87165800

MANIFOLD

[LH]

1шт.

24

00400221

HYD CONNECTOR

ELBOW

2шт.
