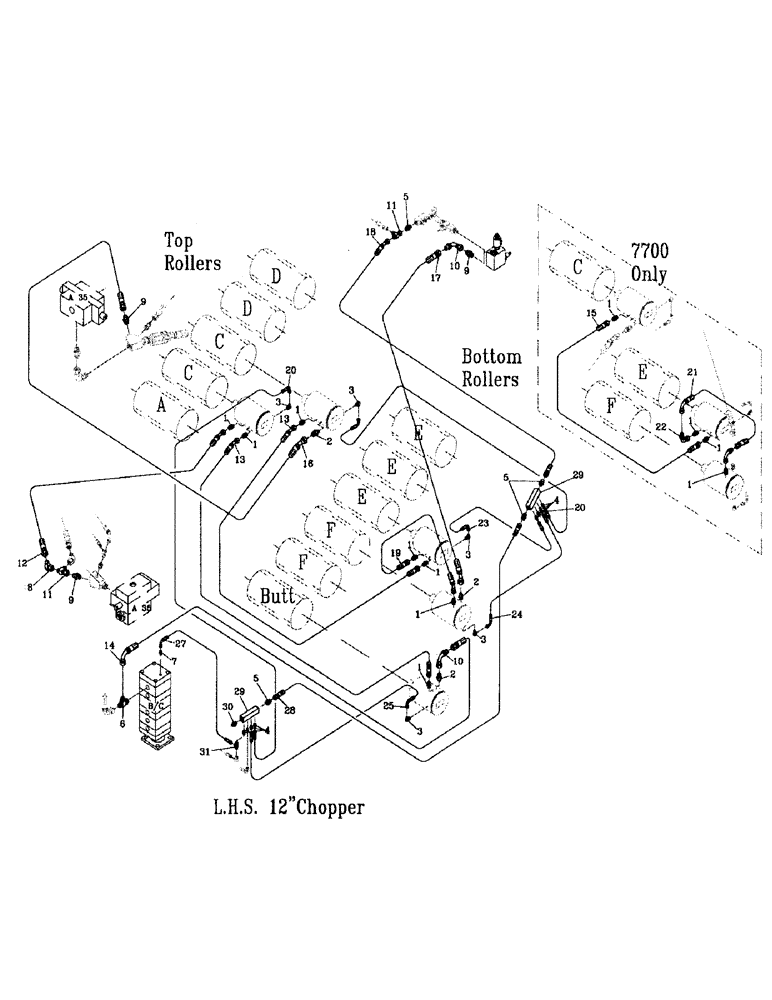

Запчасти Case IH 7000 (B06-13) - HYDRAULIC CIRCUIT, ROLLERS, LEFT HAND, 12 INCH CHOP Hydraulic Components & Circuits

1

00400228

HYD CONNECTOR

NIPPLE

7шт.

2

00400229

HYD CONNECTOR

NIPPLE

3шт.

3

00405242

HYD CONNECTOR

ELBOW

5шт.

4

00400223

HYD CONNECTOR

NIPPLE

7шт.

5

00400226

HYD CONNECTOR

NIPPLE

4шт.

6

00402106

TEE

1шт.

7

00409223

TEE

NIPPLE

1шт.

8

00404511

HYD CONNECTOR

ELBOW

1шт.

9

00400231

HYD CONNECTOR

NIPPLE

3шт.

10

00407045

HYD CONNECTOR

BEND

2шт.

11

00404679

TEE

2шт.

12

86315170

HOSE ASSY.

HOSE

1шт.

13

86310712

HOSE ASSY.

HOSE

2шт.

14

82727600

HOSE

1шт.

15

82703600

HOSE

1шт.

16

87236502

HOSE ASSY.

HOSE

1шт.

17

87032300

HOSE ASSY.

HOSE

1шт.

18

86301012

HOSE

HYDRAULIC HOSE

1шт.

19

86313520

HOSE ASSY.

HOSE

1шт.

20

86302756

HOSE ASSY.

HOSE

2шт.

21

83131500

HOSE

1шт.

22

00407516

HYD CONNECTOR

BEND

1шт.

23

87231900

HOSE ASSY.

HOSE

1шт.

24

86327600

HOSE ASSY.

HOSE

1шт.

25

82702100

HOSE ASSY.

HOSE

1шт.

27

86310227

HOSE ASSY.

HOSE

1шт.

28

87236446

FUEL HOSE,12.50 mm ID x 1160.00 mm , SAE 100R6

12.50 mm ID x 1160.00 mm , SAE 100R6

1шт.

29

00409953

RETURN PIPE

MANIFOLD

2шт.

30

00400224

HYD CONNECTOR

NIPPLE

1шт.

31

00404677

TEE

1шт.
