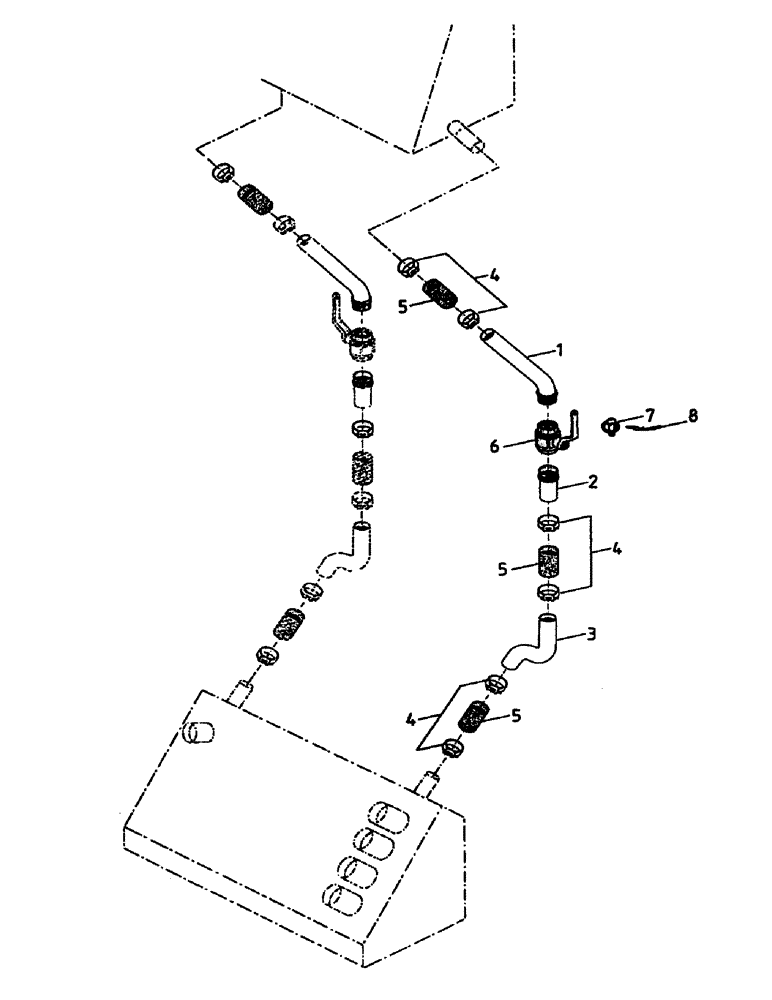

Запчасти Case IH 7000 (B06-01) - HYDRAULIC SUCTION LINES Hydraulic Components & Circuits

1

87240492

TUBE,50.80 mm OD x 260 mm L

2шт.

2

87243820

TUBE,50.80 mm OD x 99.50 mm L

2шт.

3

87240493

TUBE,47.80 mm ID x 50.80 mm OD

[LH]

1шт.

3

87240494

TUBE,47.80 mm ID x 50.80 mm OD

[RH]

1шт.

4

00181813

HOSE CLAMP

CLAMP

12шт.

5

83130600

HOSE,50.8mm ID x 152mm L, SAE J20R1

6шт.

6

87240531

HYDRAULIC VALVE

BALL VALVE

2шт.

7

00606627

PIN

LYNCH PIN

2шт.

8

87240807

CHAIN,Assembly, Incl Lynch Pin

2шт.
