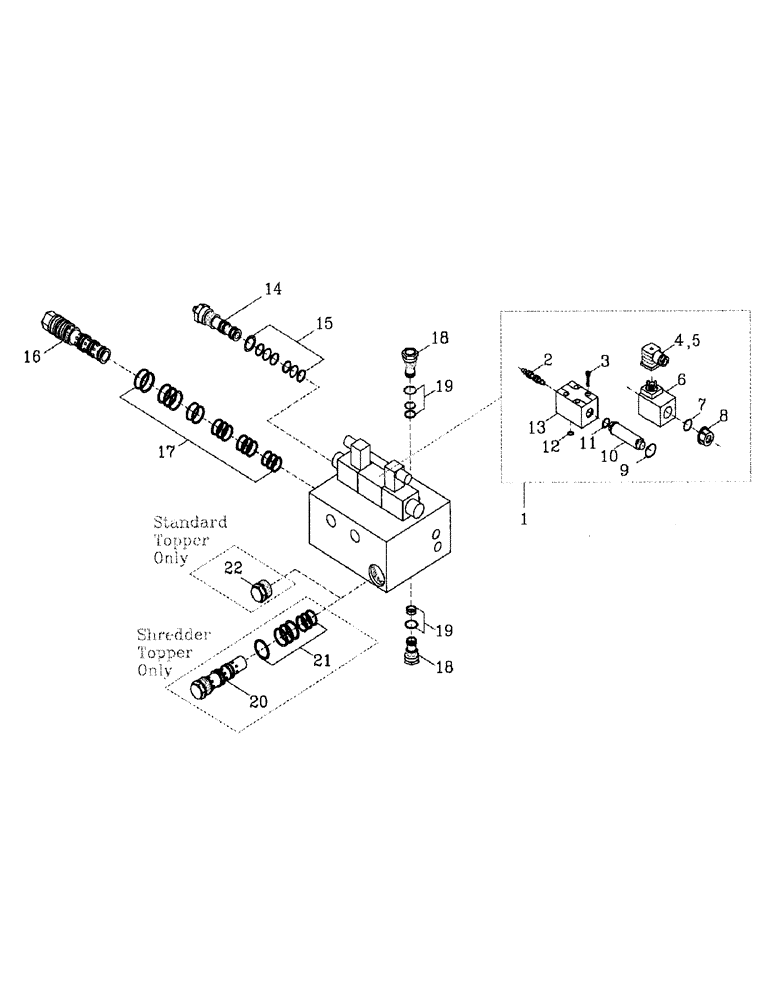

Запчасти Case IH 7000 (B05-13) - HYDRAULIC SOLENOID RELIEF VALVE Hydraulic Components & Circuits

1

00409681

PILOT VALVE

CETOP ASSEMBLY

1шт.

2

00409682

SPOOL

1шт.

3

FC105025

SCREW,M5 x 25mm

4шт.

4

00409668

ELEC CONNECTOR

CONNECTOR [Grey]

1шт.

5

00409524

ELEC CONNECTOR

CONNECTOR [Black]

1шт.

6

00409666

COIL

SOLENOID

2шт.

7

00100193

O-RING

2шт.

8

00409694

NUT

2шт.

9

00103023

O-RING

2шт.

10

00409667

TUBE

2шт.

11

00103022

O-RING

2шт.

12

00100007

O-RING

4шт.

13

00409665

VALVE BODY

HOUSING

1шт.

14

00409677

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

15

00409678

SEAL KIT

1шт.

16

00409674

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

17

00409653

SEAL KIT

1шт.

18

00409679

HYDRAULIC VALVE

CARTRIDGE

2шт.

19

00409680

SEAL KIT

2шт.

20

00409676

FLOW DIVIDER

CARTRIDGE [Shredder Topper]

1шт.

21

00409675

SEAL KIT

[Shredder Topper]

1шт.

22

00409908

PLUG

[Standard Topper]

1шт.

23

87250121

PUMP, HYDROSTATIC

ASSEMBLY [Shredder Topper]

1шт.

24

00409826

VALVE

ASSEMBLY [Standard Topper]

1шт.
