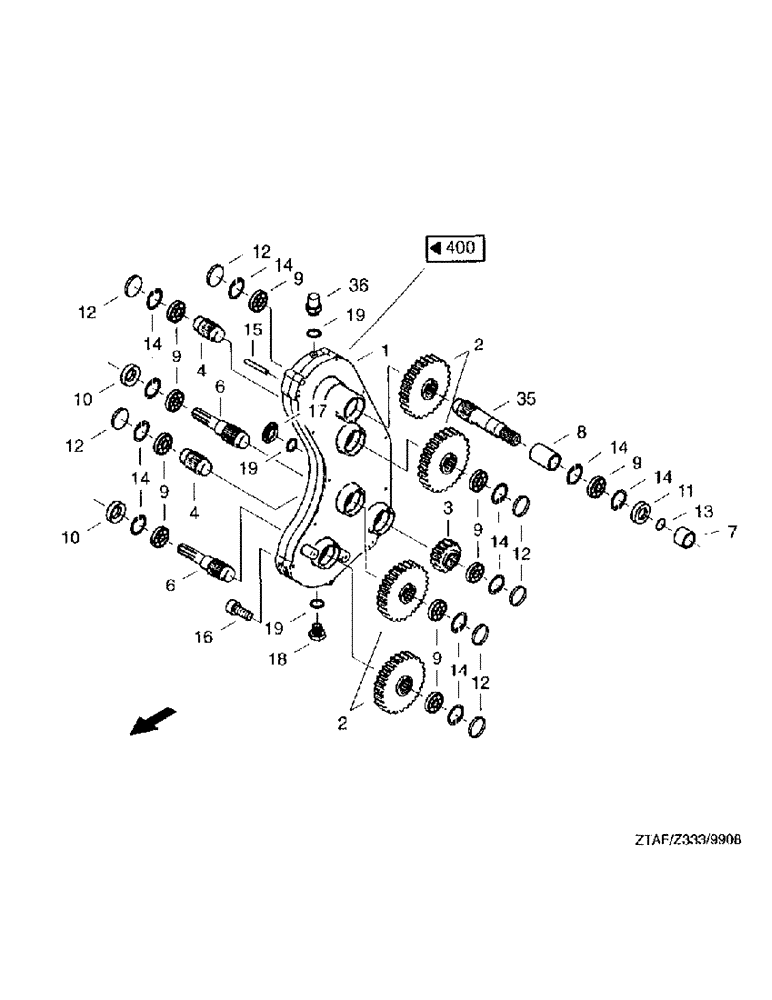

Запчасти Case IH PU3F0 (25) - GEAR BOX ASSY (58) - ATTACHMENTS/HEADERS

1

09128006

HOUSING

Kpl.

1шт.

2

03117672

PINION

GEAR spur, Z=42 M=5.0 ST

4шт.

3

03121344

PINION

WHEEL, Z=22 M=5.0 ST

1шт.

4

03117676

JACKSHAFT

COUNTER ST

2шт.

6

03117675

DRIVE SHAFT

ST

2шт.

7

04127854

BUSHING

43 mm ST

1шт.

8

04128543

SPACER

SLEEVE, ST

1шт.

9

97060310

BALL BEARING

BALL grooved, 6210 DIN625

10шт.

10

97042283

SEAL

SHAFT, A50 x 90 x 10 DIN3760

2шт.

11

07042324

SHAFT seal, A60 x 90 x10 DIN3760

1шт.

12

97024036

VANEUM GAUGE

COVER, 90 DIN442 UST

7шт.

13

98046831

SNAP RING

O-RING, Z 77-20-10 4 47.35 x 1,78

1шт.

14

800-2190

SNAP RING,M90, Int

11шт.

15

97027312

PIN

PLAIN, 10M6 x 50 DIN7

2шт.

16

97007823

SCREW

HEAD cheese, M12 x 50/8.8 DIN912

11шт.

17

98036292

SIGHTGLASS

GAUGE OIL level, M16 x 1.5 MS

1шт.

18

97014849

VANEUM GAUGE

SCREW closing, M16 x 1.5 DIN908 5.8

1шт.

19

97043661

GASKET

A16 x 22 x 15 DIN7603-CU

3шт.

35

03128448

SHAFT

counter

1шт.

36

98046505

BREATHER

M16 x 1.5 DIN910

1шт.
