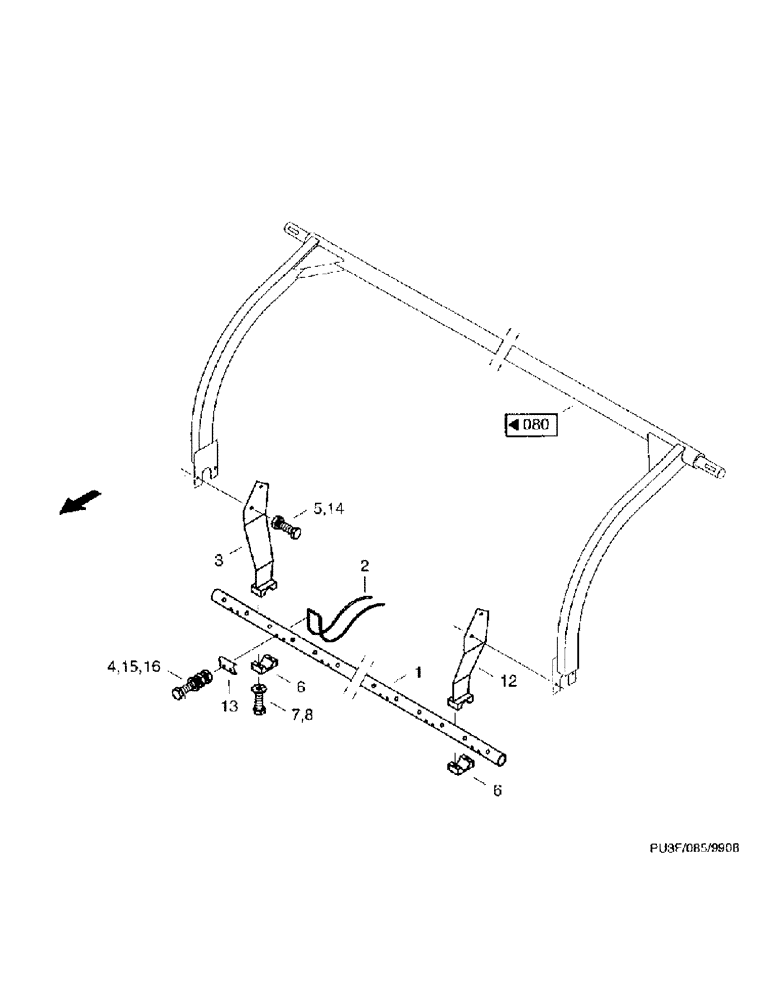

Запчасти Case IH PU3F0 (12) - TINE COMPRESSING RAKE (58) - ATTACHMENTS/HEADERS

1

31220628

BAR

1шт.

2

03935952

RETAINER

holding-down tines m

12шт.

3

31220597

ARM

r

1шт.

4

43362

NUT,M8 x 1.25, Cl 10

48шт.

5

86500689

NUT,M10 x 1.5, Cl 10

4шт.

6

36083896

TERMINAL CONNECTOR

PIECE clamping

2шт.

7

614-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

8

06577011

PLATE, LOCKING

WASHER, M12

4шт.

12

31220572

ARM

l

1шт.

13

36187700

SUPPORT

TINE holder

12шт.

14

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

15

06562062

WASHER

8.4 DIN7349 ST

24шт.

16

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

24шт.
