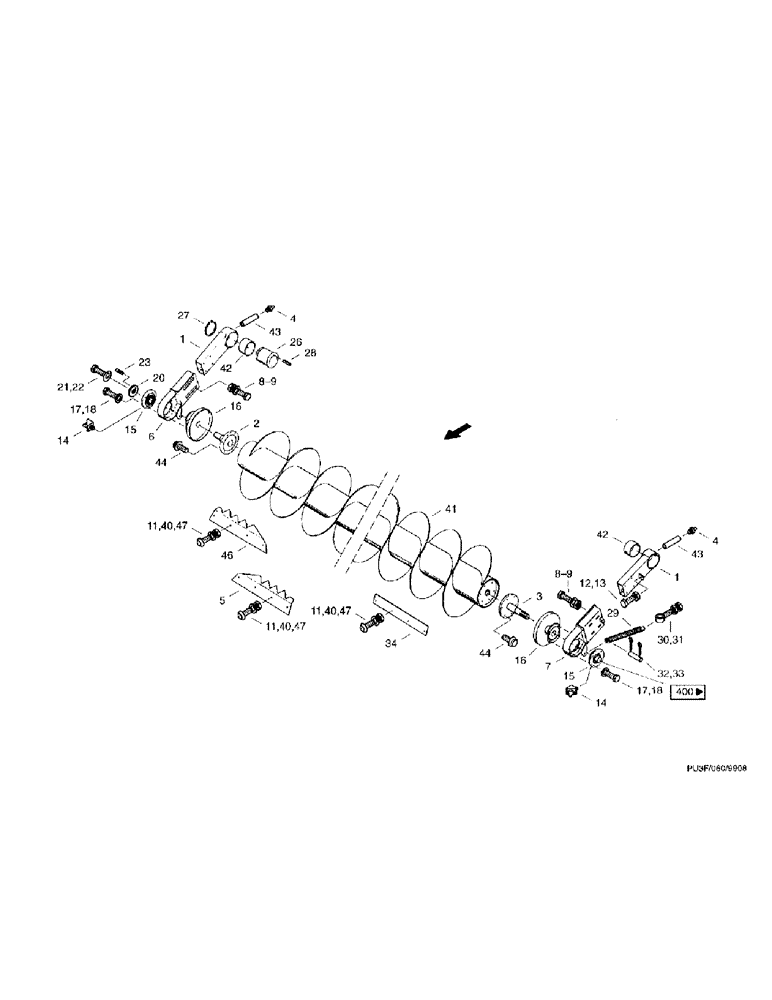

Запчасти Case IH PU3F0 (08) - FEED AUGER (58) - ATTACHMENTS/HEADERS

1

03127199

ARM

SCREW

1шт.

2

02128668

DRIVE SHAFT

stub, drive Kpl.

1шт.

3

02128666

DRIVE SHAFT

stub, drive Kpl.

1шт.

4

03617056

LUBE NIPPLE

AM8 x 1 DIN71412

2шт.

5

03133313

SHEET

indented, left

2шт.

6

03128446

ARM ASSY.

LINKS adjustable, Rechts

1шт.

7

03128447

ARM ASSY.

LINKS adjustable

1шт.

8

814-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

hex, M12 x 75 ISO4014 8.8

8шт.

9

06562038

WASHER

13 DIN7349 ST

8шт.

10

100038

NUT,M12 x 1.75, Cl 8

8шт.

11

825-1410

NUT,M10, Cl 8

24шт.

12

06332660

CAPSCREW

SPARE PART hex, M16 x 80 ISO4017 10.9

2шт.

13

825-1416

NUT,M16, Cl 8

2шт.

14

036291758

grease Nipple BM6x1 DIN71412

1шт.

15

97069692

BEARING CARRIER

FLANGE, PME45

2шт.

16

36291581

GUARD

wrap

2шт.

17

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

8шт.

18

97022012

RING, SNAP

RING SNAP locking, VSK12

8шт.

20

04086158

WASHER

1шт.

21

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

22

97027870

PLATE, LOCKING

13 DIN432 ST

1шт.

23

97028417

DOWEL

PIN, 6 x 16 DIN1471 ST

1шт.

26

04122999

PIPE

1шт.

27

97034105

CIRCLIP

snap, 105 x 4-FST DIN471

1шт.

28

06161416

SPLIT PIN/SAFETY PIN

roll, 6 x 24 DIN1481

1шт.

29

02119255

TENSION SPRING

2шт.

30

97013110

SCREW

eye, LBM12 x 90 DIN444 8.8

2шт.

31

829-1412

NUT,M12, Cl 10.9

4шт.

32

04128499

LARGE PIN

PIN, LARGE

2шт.

33

06402103

PIN, SPLIT (COTTER)

PIN, COTTER 3.2 x 25 DIN94 ST

4шт.

34

04133069

LARGE PLATE

PLATE, LARGE

4шт.

40

06577003

SPECIAL WASHER

M10

24шт.

41

36291540

WORM

AUGER feed

1шт.

42

98046687

BUSHING

105/110 x 59-1BREIT M.SCHMIERT

1шт.

43

04127618

SHAFT

Piece intermediate, 55 mm

2шт.

44

98045846

SCREW

M10 x 20 KL 100 VERBUS-RIPP

12шт.

46

03133314

SHEET

indented, right

2шт.

47

06019572

SCREW

HEAD fillister, M10 x 25 10.9 A3C ISO7380

24шт.
