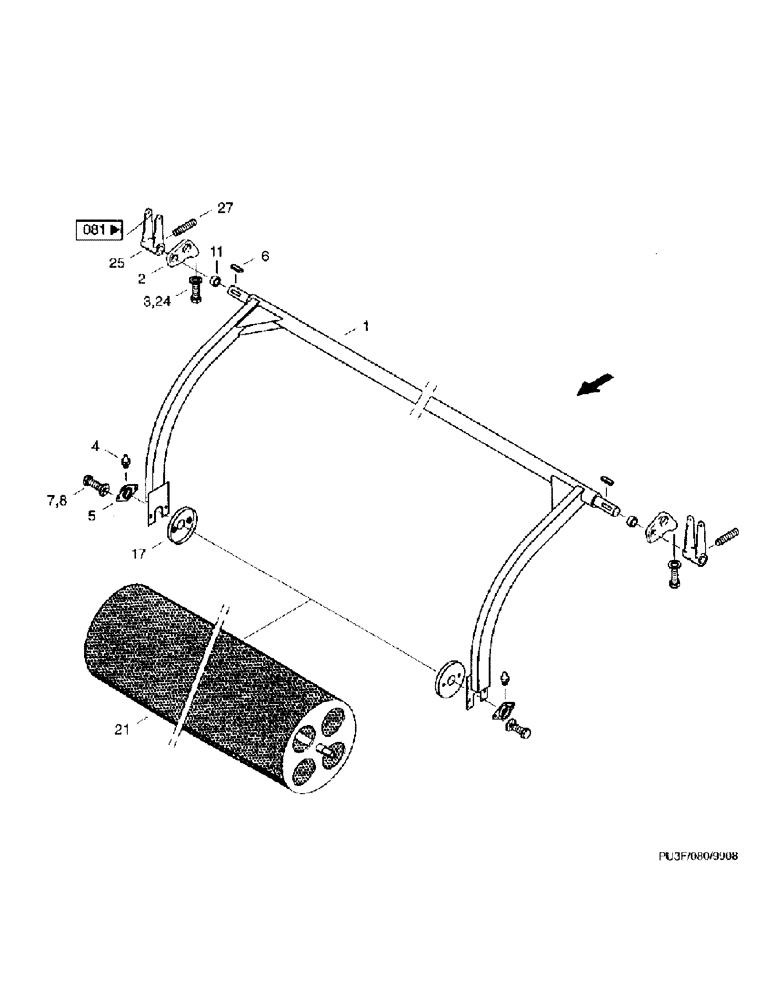

Запчасти Case IH PU3000 (10) - ROLLER COMPRESSING RAKE (58) - ATTACHMENTS/HEADERS

1

31220507

HOLDER

frame supporting

1шт.

2

03127796

SUPPORT

BEARING

2шт.

3

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

4

03617064

LUBE NIPPLE

AM10 x 1 DIN71412

2шт.

5

03133482

FLANGED BEARING,30mm ID x 62mm OD x 20.5mm

FLANGE, GLCTE 30 BISHER 97069059

2шт.

6

97031105

BUCKET TOOTH KEY

flat, A12 x 8 x 50 DIN6885 ST

2шт.

7

614-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8, Full Thd

ISO 4017

4шт.

8

06577003

SPECIAL WASHER

M10

4шт.

11

98028390

BUSHING

WB 800 D40 x D44 x 25

2шт.

17

32518797

PROTECTOR

WRAP

2шт.

21

31220523

DRUM

Roller pressing

1шт.

24

06577011

PLATE, LOCKING

WASHER, M12

4шт.

25

04127806

LEVER

2шт.

27

97013743

PIN

threaded, M10 x 16 DIN914 8.8

2шт.
