(90.119.02) - SHIELDS, BELT DRIVE

Запчасти Case IH 3016 (90.119.02) - SHIELDS, BELT DRIVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

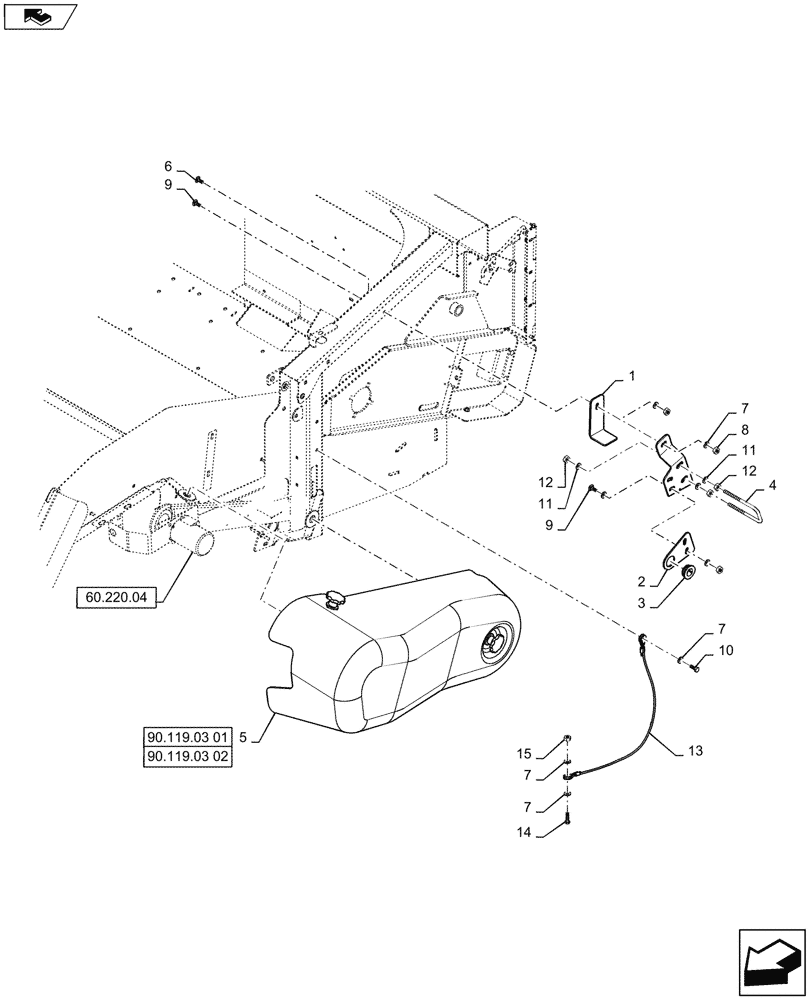

Схема запчастей Case IH 3016 - (90.119.02) - SHIELDS, BELT DRIVE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.119.03 02
2
5
6
9
1
11
15
7
3
4
8
12
11
14
10
13
7
12
home
7
9
7
60.220.04
90.119.03 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84271894

BRACKET, SUPPORTING

Latch

1шт.

2

84207826

MOUNT

LH

1шт.

3

556719

BUSHING,21.9mm ID x 31.9mm OD x 15mm L

1шт.

4

84150346

BRACKET

1шт.

5

84290551

SHIELD

Drive

1шт.

6

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

8

9706690

NUT,M8 x 1.25, Cl 8

2шт.

9

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

12

100016

NUT,M10 x 1.5, Cl 8

6шт.

13

84293068

FLEXIBLE CABLE,687mm L

1шт.

14

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

15

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

Выбрано товаров: 15
