(90.108.02) - DECALS, RH, LH & REAR

Запчасти Case IH 3016 (90.108.02) - DECALS, RH, LH & REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

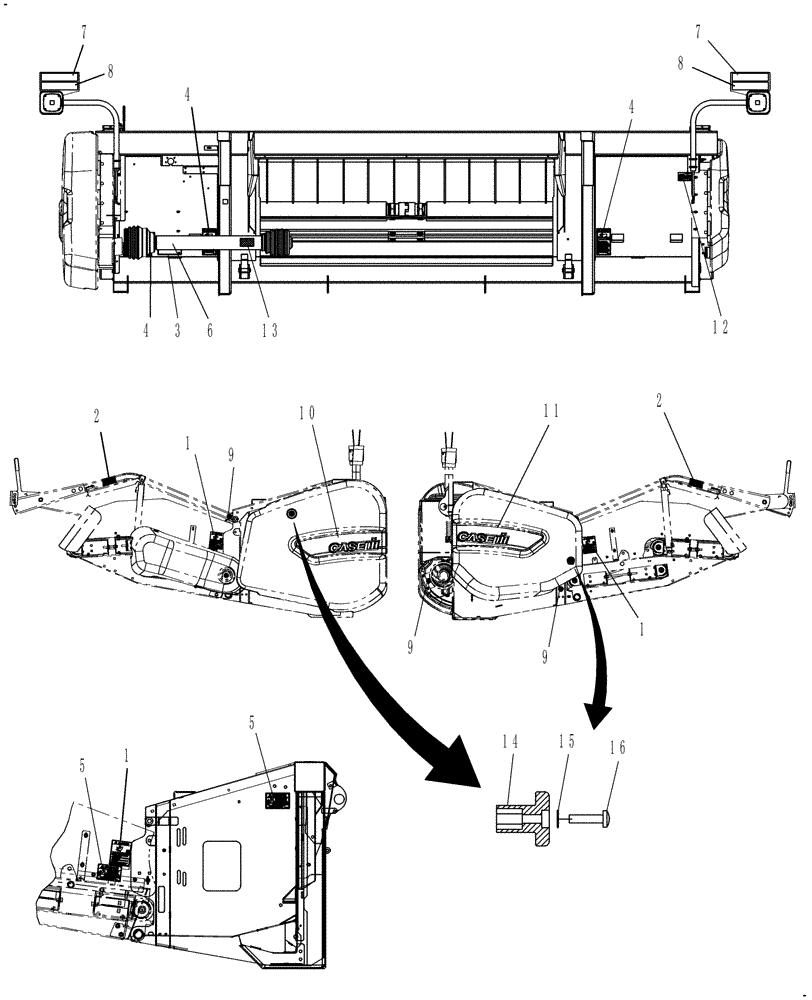

Схема запчастей Case IH 3016 - (90.108.02) - DECALS, RH, LH & REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
13
6
9
11
16
1
7
4
9
2
10
5
14
4
1
7
8
8
12
15
9
1
5
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87413244

DECAL

DANGER, Pinch Point Hazard

2шт.

2

84004735

CAUTION DECAL

WARNING, Crush Hazard, English

2шт.

3

84246563

DECAL

Lube

1шт.

4

84068808

DANGER DECAL

Rotating Driveline, English

1шт.

5

84004734

WARNING DECAL

Shield Open, English

2шт.

6

849472

DANGER DECAL

Inner Shield, English

1шт.

6

849483

DANGER DECAL

Inner Shield, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

7

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

8

86547783

REFLECTOR,Tape, Red Orange

Orange Retroreflective

2шт.

9

84334829

DECAL

Grease, 50 Hr.

5шт.

10

87480618

DECAL

LH, CASE IH

1шт.

11

87480619

DECAL

RH, CASE IH

1шт.

12

NS

NOT SERVICED

Identity Plate

1шт.

13

849471

DANGER DECAL

Outer Shield, English

1шт.

13

849482

DANGER DECAL

Outer Shield, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

14

87031838

KNOB

2шт.

15

280279

LOCK WASHER,Ext Tooth, 1/4"

2шт.

16

86511831

SCREW,Phillips Drive, Pan HD, M6 x 25mm

2шт.
