(88.060.01) - DIA KIT, FIXED GUAGE WHEEL

Запчасти Case IH 3016 (88.060.01) - DIA KIT, FIXED GUAGE WHEEL (88) - ACCESSORIES

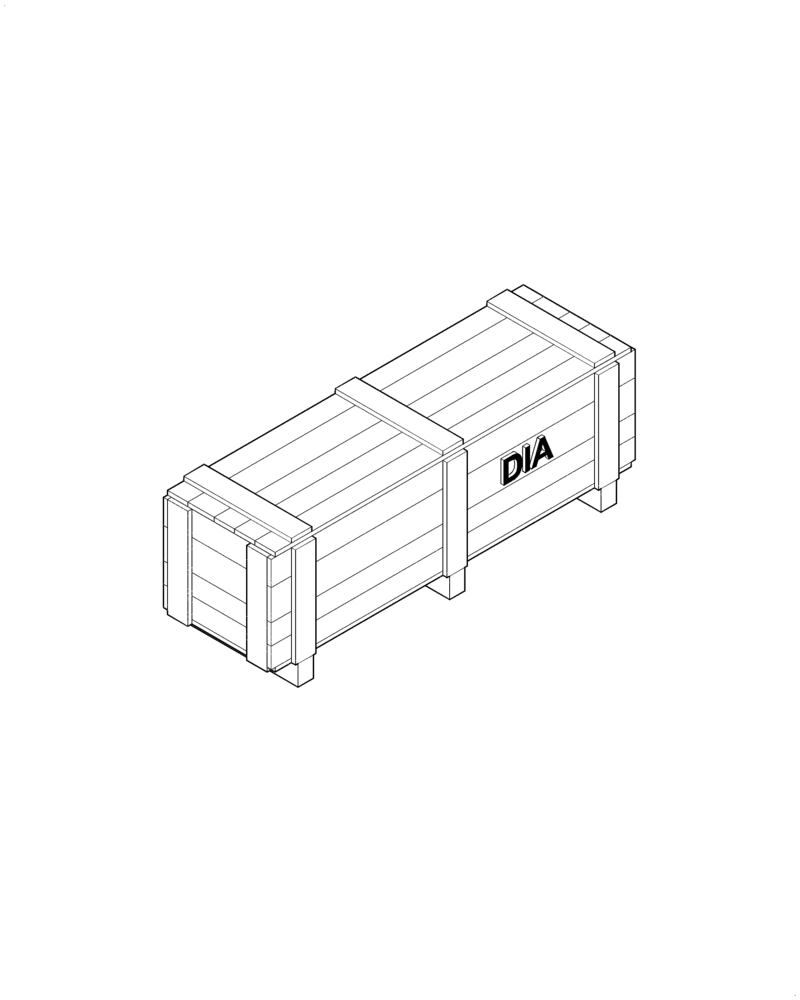

Схема запчастей Case IH 3016 - (88.060.01) - DIA KIT, FIXED GUAGE WHEEL (88) - ACCESSORIES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84268133

DIA KIT, HARVESTER

Fixed Gage Wheel, , Includes: Ref. 2 - 6 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

84392225

WHEEL ASSY

LH

1шт.

3

84392226

WHEEL ASSY

RH

1шт.

4

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

10шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

6

9706685

NUT,M12 x 1.75, Cl 8

10шт.
