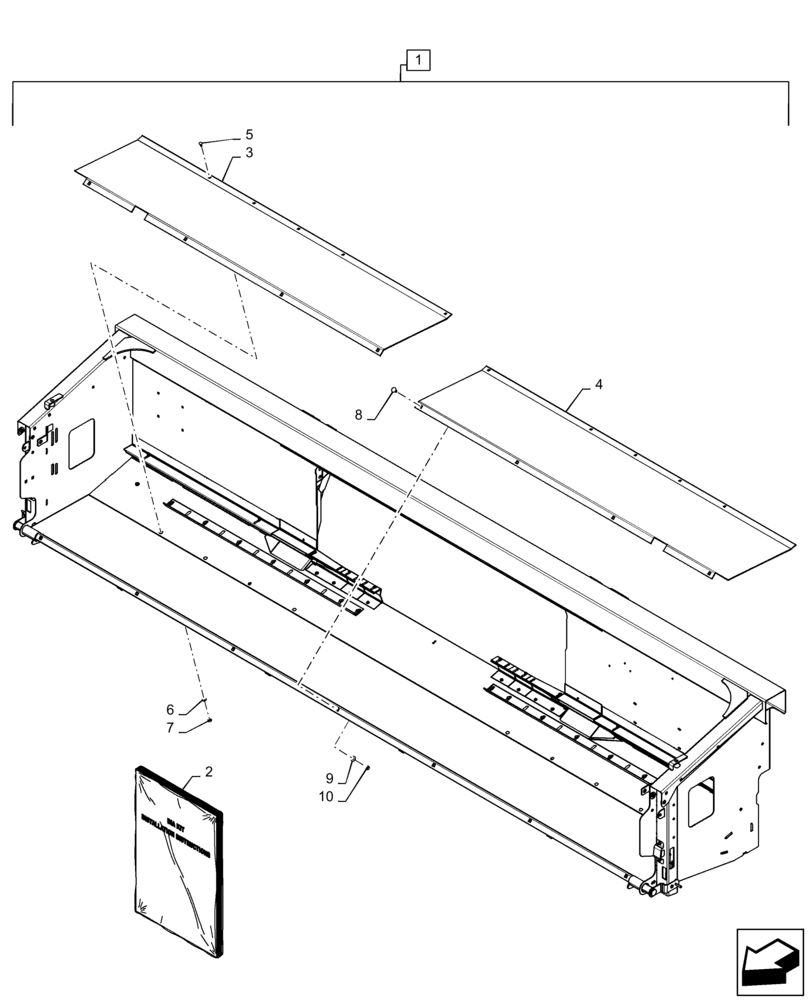

Запчасти Case IH 3016 (88.058.09) - DIA KIT, FALSE FLOOR (88) - ACCESSORIES

1

47732764

DIA KIT, HARVESTER

False Floor, Incl 2-10

1шт.

2

47801757

INSTRUCTION

1шт.

3

47710921

FLOOR

RH

1шт.

4

47710922

FLOOR

LH

1шт.

5

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

7

43362

NUT,M8 x 1.25, Cl 10

1шт.

8

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

1шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

10

9706685

NUT,M12 x 1.75, Cl 8

1шт.
