Запчасти Case IH 3016 (88.058.06[01]) - DIA KIT, 15 HEADER ADAPTER KIT FOR MID-RANGE COMBINES 2188/2388/2588 (88) - ACCESSORIES

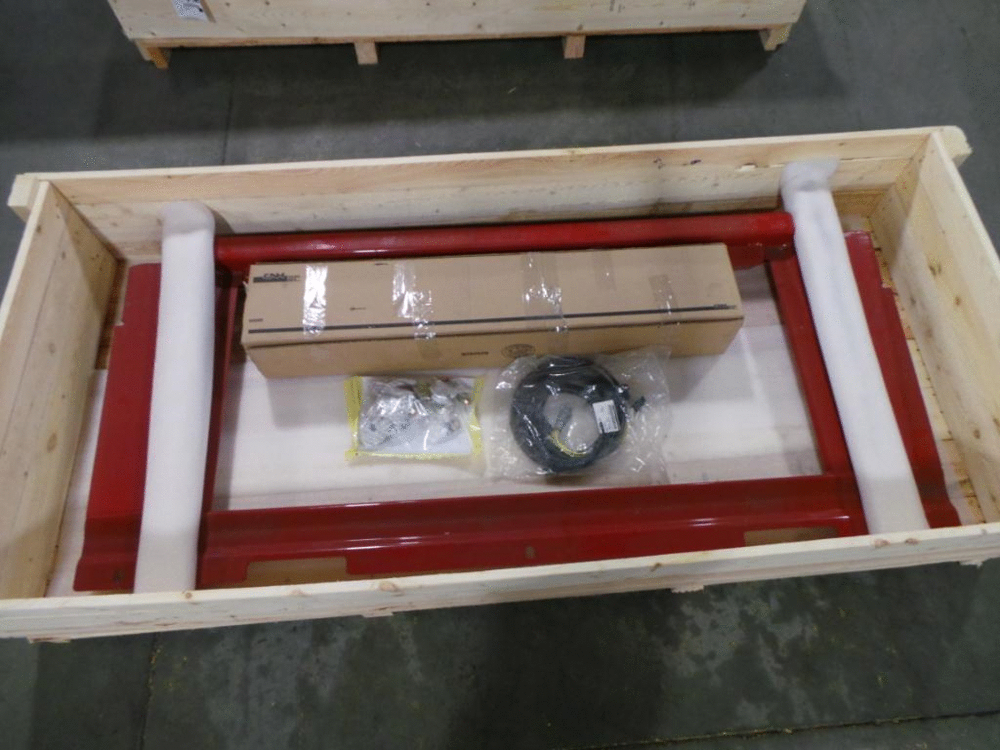

Схема запчастей Case IH 3016 - (88.058.06[01]) - DIA KIT, 15 HEADER ADAPTER KIT FOR MID-RANGE COMBINES 2188/2388/2588 (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

84268190

DIA KIT, HARVESTER

3016 15' HEADER ADAPTER KIT FOR MID-RANGE COMBINES 2188/2388/2588, Includes: Ref. 2 - 12

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

84192170

ADAPTER

1шт.

3

84479211

PTO

1шт.

4

84473633

WIRE HARNESS

1шт.

5

87061093

LATCH

2шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

16шт.

7

73260

ARMATURE

SPARE PART

8шт.

8

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

4шт.

9

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

10

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

3шт.

11

86509867

BOLT,Hex Flg, M16 x 40mm

3шт.

12

84480297

INSTRUCTION

1шт.

Выбрано товаров: 13
