(88.058.05[03]) - POWER TAKE OFF, 3016 12 ADAPTER KIT

Запчасти Case IH 3016 (88.058.05[03]) - POWER TAKE OFF, 3016 12 ADAPTER KIT (88) - ACCESSORIES

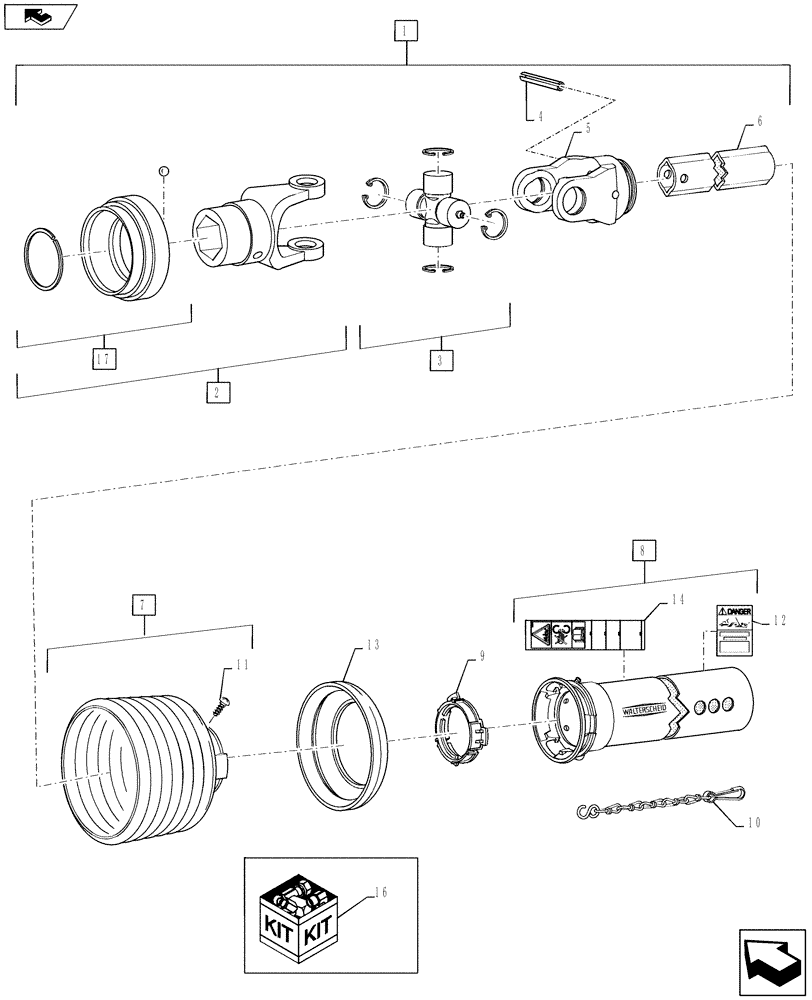

Схема запчастей Case IH 3016 - (88.058.05[03]) - POWER TAKE OFF, 3016 12 ADAPTER KIT (88) - ACCESSORIES
16
7
3
11
home
13
8
14
5
4
10
9
2
17
6
12
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84479203

PTO

Includes: Ref. 2 - 17

1шт.

2

87049110

YOKE

1-1/8" Hex

1шт.

3

84607620

SPIDER

& Bearing Kit

1шт.

4

412690

PIN,10mm OD x 65mm L, Slotted

1шт.

5

727163

YOKE

1шт.

6

84287813

PTO SHAFT

Inner

1шт.

7

87024157

OUTER SHIELD

Cone, 7 Rib

1шт.

8

84287821

INNER SHIELD

Outer

1шт.

9

1281450C1

RING

Bearing

1шт.

10

1281453C1

CHAIN (AG)

Restraint

1шт.

11

86597706

SCREW,10mm

1шт.

12

849471

DANGER DECAL

English

1шт.

12

849482

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

12

9801260

DANGER DECAL

Spanish

1шт.

Locate Spanish Decal Adjacent to English Decal Where Possible. Install Spanish Decal Over English Decal Where Necessary.

1шт.

13

456679

COLLAR

1шт.

14

86520062

DECAL

CE

1шт.

15

NSS

NOT SOLD SEPARAT

Decal, Euopean

1шт.

16

364914A1

COLLAR ASSY.

Kit

1шт.

17

NSS

NOT SOLD SEPARAT

CE Instruction Manual

1шт.
