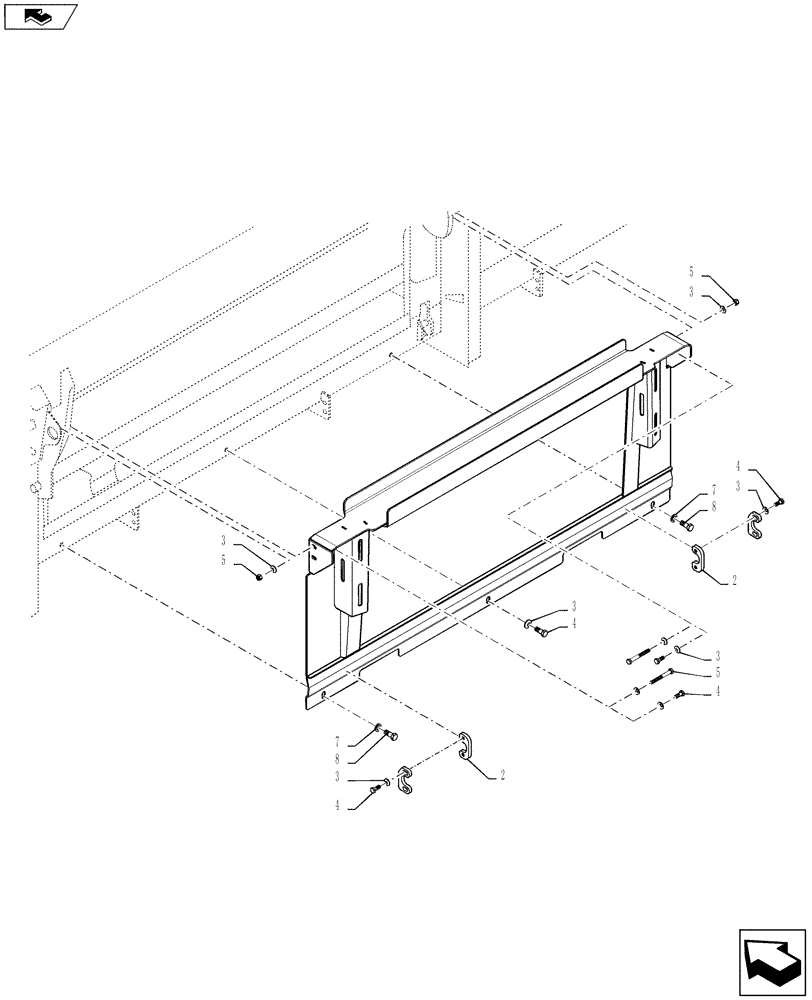

Запчасти Case IH 3016 (88.058.05[02]) - FRAME, 3016 ADAPTER KIT, 12 FT HEADER (88) - ACCESSORIES

1

84192170

ADAPTER

1шт.

2

87061093

LATCH

4шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

16шт.

4

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

5

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

4шт.

6

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

7

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

3шт.

8

86509867

BOLT,Hex Flg, M16 x 40mm

3шт.
