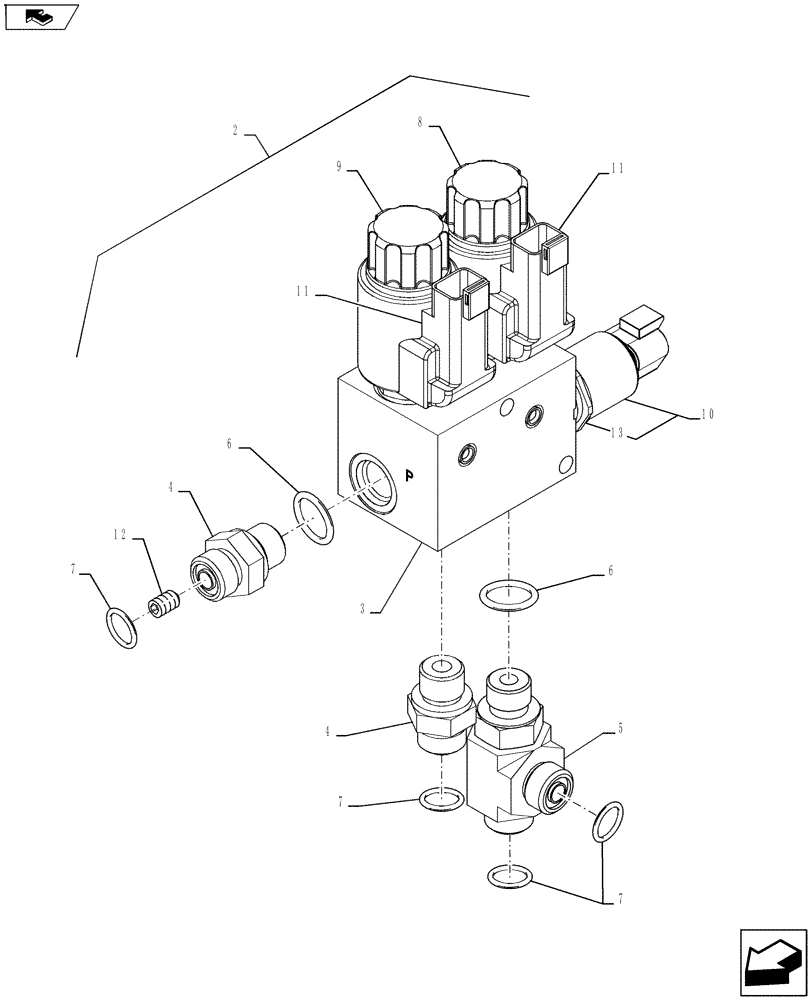

Запчасти Case IH 3016 (88.035.01[02]) - DIA KIT, IN CAB HYDRAULIC FLOATATION, CONTROL VALVE ASSEMBLY (88) - ACCESSORIES

1

84268018

DIA KIT, HARVESTER

In Cab Hydraulic Flotation

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

Kit Includes Parts Shown in Figures 88.035.01 01, 88.035.01 02, 88.035.01 03 & 88.035.01 04

1шт.

2

0C

ORDER COMPONENTS

Valve Assembly

1шт.

87721875

1шт.

3

87661734

MANIFOLD VALVE

1шт.

4

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Includes: (1) Ref. 5 & (2) Ref. 6

2шт.

5

86579701

TEE,11/16"-16 ORFS x M16 x 1.5 ORB Run

Includes: (1) Ref. 5 & (2) Ref. 6

1шт.

6

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

8

87736061

SOLENOID

1шт.

9

87736090

SOLENOID

1шт.

10

87736062

SENSOR

Pressure, Includes: Ref. 13

1шт.

11

87736063

COIL

2шт.

12

87736060

RESTRICTOR

1шт.

13

84420663

O-RING

1шт.
