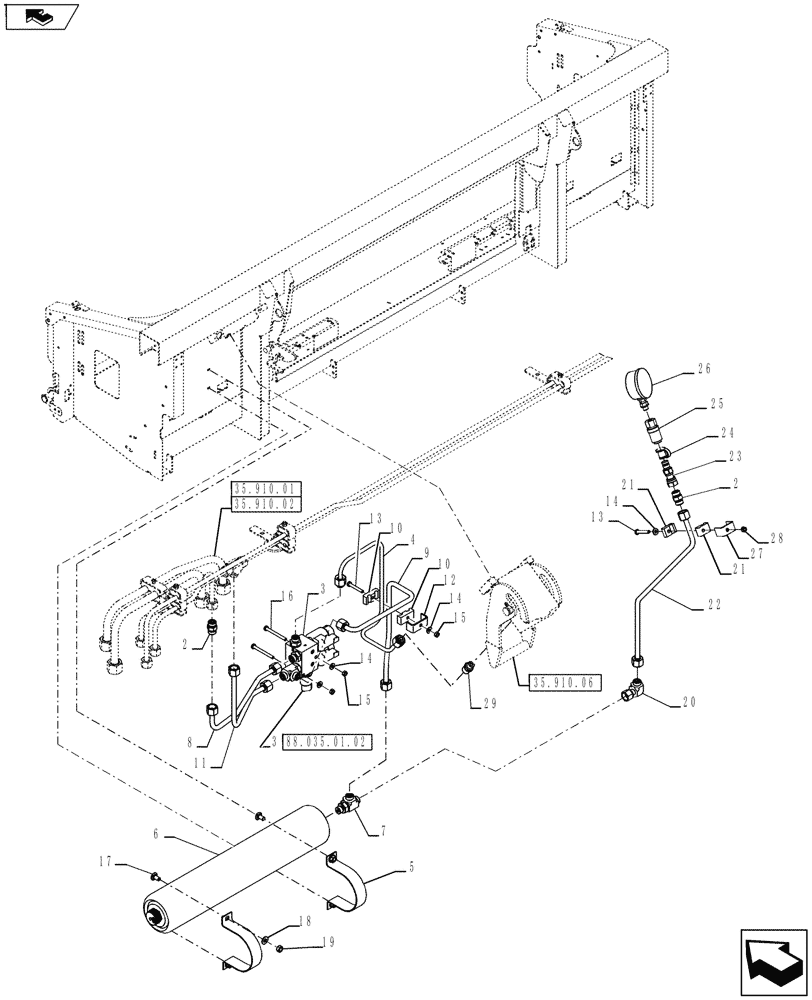

Запчасти Case IH 3016 (88.035.01[01]) - DIA KIT, IN CAB HYDRAULIC FLOATATION (88) - ACCESSORIES

1

84268018

DIA KIT, HARVESTER

In Cab Hydraulic Flotation, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

Kit Includes Parts Shown in Figures 88.035.01 01, 88.035.01 02, 88.035.01 03 & 88.035.01 04

1шт.

2

84431546

UNION,11/16"-16 ORFS

4шт.

3

0C

ORDER COMPONENTS

Control Valve

1шт.

87721875

1шт.

4

87661733

HYD TUBE,.375" OD

1шт.

5

87676377

CLAMP

2шт.

6

87563944

ACCUMULATOR,2L

1шт.

7

86579701

TEE,11/16"-16 ORFS x M16 x 1.5 ORB Run

1шт.

8

84143851

HYD TUBE,10 mm OD

1шт.

9

84278610

HYD TUBE,10 mm OD x 245.5, 195.9 mm L

1шт.

10

430357

CLAMP

2шт.

11

84143857

HYD TUBE,10 mm OD

1шт.

12

431941

SUPPORT

1шт.

13

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

15

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

16

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

17

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

19

43362

NUT,M8 x 1.25, Cl 10

4шт.

20

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

21

433008

CLAMP

2шт.

22

84277790

HYD TUBE,10 mm OD x 351.40, 350 mm L

1шт.

23

76085022

COUPLING

1шт.

24

86502604

DUST CAP

1шт.

25

84279071

HYD CONNECTOR

1шт.

26

84279075

PRESSURE GAUGE

1шт.

27

442340

SUPPORT

1шт.

28

353308

NUT,M6 x 1.0, Cl 8

1шт.

29

86623107

ADAPTER,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.
