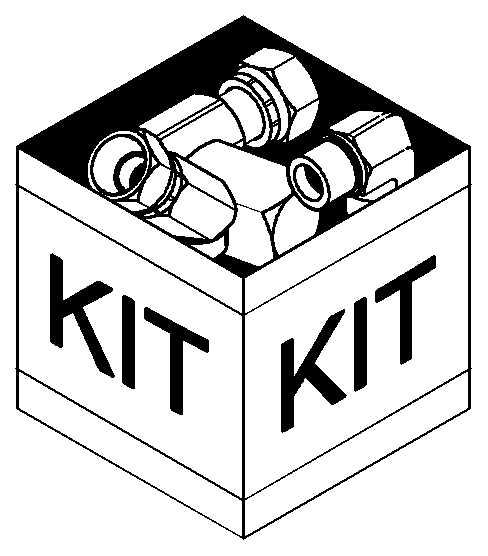

Запчасти Case IH 3016 (60.220.13) - KIT IDLER ASSEMBLY (60) - PRODUCT FEEDING

1

47479751

KIT

Incl 2 - 6

1шт.

2

84345113

IDLER,69.85mm Idler Dia x 88.9mm OD x 35.7mm W

1шт.

3

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

4

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

6

100038

NUT,M12 x 1.75, Cl 8

1шт.
