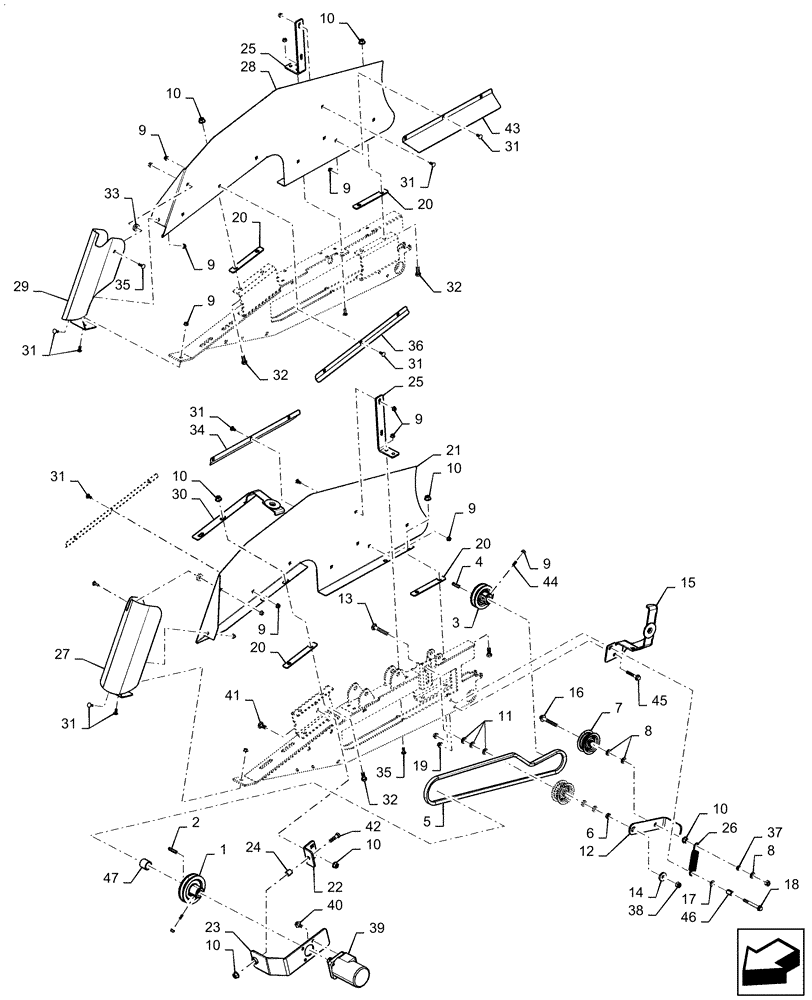

Запчасти Case IH 3016 (60.220.04[03]) - PICKUP DRIVE WITH 2 IDLERS, S.N. YGS064187 AND AFTER (60) - PRODUCT FEEDING

1

87687598

PULLEY,120.65mm OD

1шт.

2

87480

KEY,1/4" x 1-3/4" L

1шт.

3

87496437

PULLEY,100.33mm OD

1шт.

4

Y24430

KEY,1/4" Sq x 1 1/2", Par

1шт.

5

677419

V-BELT,0.66" W x 67.80" L

1шт.

6

144607

SPACER,0.516" ID x 0.749" OD x 0.28" L

1шт.

7

84345113

IDLER,69.85mm Idler Dia x 88.9mm OD x 35.7mm W

2шт.

8

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

5шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

32шт.

10

9804279

FLANGE NUT,Hex, M12, Cl 8

12шт.

11

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

12

47591897

ARM

1шт.

13

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

1шт.

14

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

1шт.

15

84163282

BRACKET

1шт.

16

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

18

87681204

BOLT,Hex, M10 x 90mm, Cl 10.9

1шт.

19

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

20

84145881

SHIM,25.4mm OD x 4.37mm Thk

4шт.

21

84510527

SHIELD

1шт.

22

84217054

SUPPORT

1шт.

23

84217065

MOUNT

1шт.

24

511731

BUSHING,12.83mm ID x 19.18mm OD x 20.64mm L

1шт.

25

84201764

SUPPORT

2шт.

26

143224

SPRING,Extension, 1" OD x 5-7/16" L

1шт.

27

84495441

GUARD

LH

1шт.

28

84510526

SHIELD

RH

1шт.

29

84495447

GUARD

RH

1шт.

30

84162917

BRACKET

1шт.

31

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

20шт.

32

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

33

79005242

WASHER,12.6mm ID x 28mm OD x 7mm Thk

2шт.

34

84425586

DEFLECTOR

1шт.

35

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

6шт.

36

84199706

SUPPORT

2шт.

37

378958A1

SPACER, RING

1шт.

38

100038

NUT,M12 x 1.75, Cl 8

2шт.

39

87678368

HYDRAULIC MOTOR,97CC

1шт.

40

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

41

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

42

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

43

84425588

DEFLECTOR

RH

1шт.

44

300478

SET SCREW,M8 x 20mm

6шт.

45

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

1шт.

46

37836

SPACER,1" - 8 x 8"

1шт.

47

84293436

SPACER,28.93mm ID x 34.93mm OD x 32mm L

1шт.
