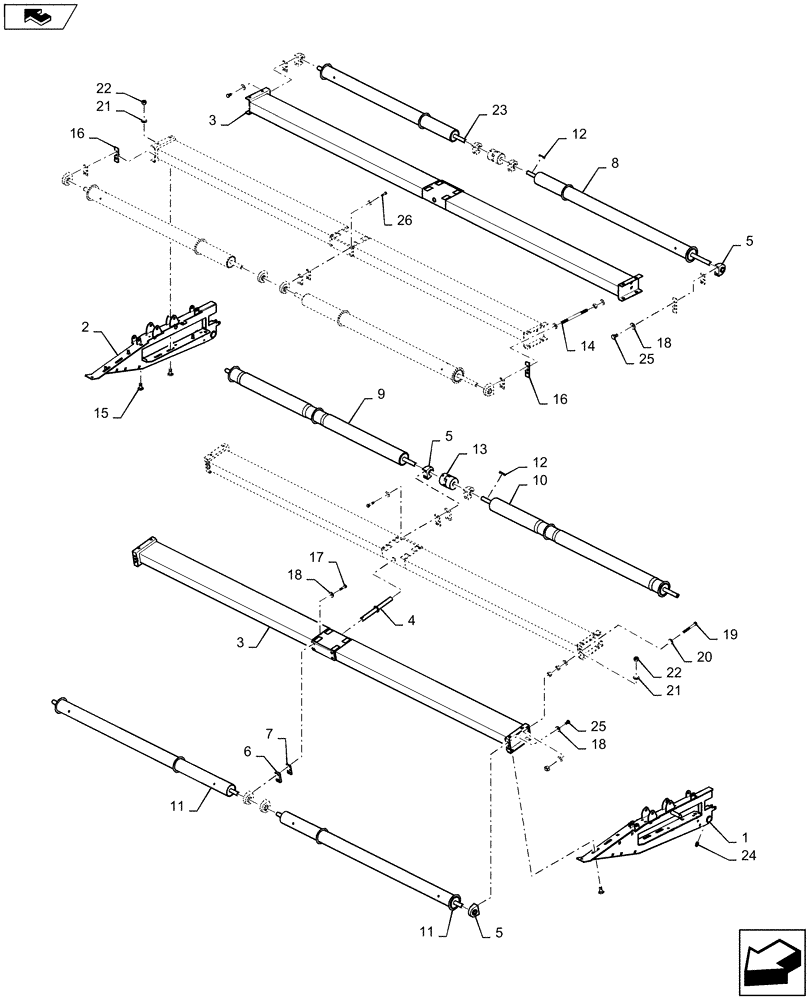

Запчасти Case IH 3016 (60.220.03) - PICKUP FRAME, 15 HEADERS (60) - PRODUCT FEEDING

1

84124375

ARM

LH

1шт.

2

84124381

ARM

RH

1шт.

3

84128848

FRAME

4шт.

4

84128844

SPECIAL PIN

1шт.

5

87686044

PILLOW BLOCK

16шт.

6

84128856

SHIM

8шт.

7

84128858

SHIM,38.1mm OD x 5.2mm Thk

8шт.

8

84401226

ROLLER,88.9mm OD x 2453.02mm L

Transfer Drive, LH

1шт.

9

84205968

ROLLER,88.9mm OD x 2342.22mm L

RH Picking

1шт.

10

84205967

ROLLER,88.9mm OD x 2403.02mm L

LH Picking

1шт.

11

84207320

ROLLER,88.9mm OD x 2298.72mm L

Picking Idler, RH

4шт.

12

479370R1

KEY,1/4" Sq x 2", Par

4шт.

13

84165663

SET

2шт.

14

84128843

THREADED ROD

M12 x 1

2шт.

15

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

16шт.

16

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

16шт.

17

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

16шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

32шт.

19

9837937

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

20

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

30шт.

22

9706685

NUT,M12 x 1.75, Cl 8

30шт.

23

84401230

ROLLER,88.9mm OD x 2342.22mm L

Transfer Drive, RH

1шт.

24

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.
