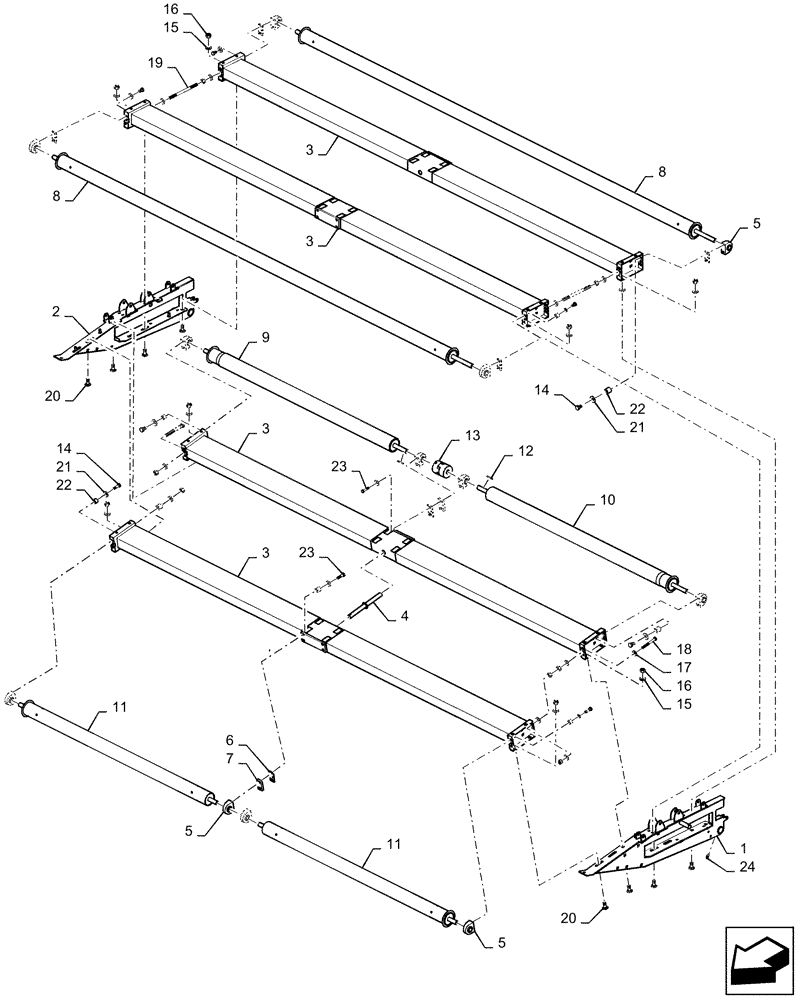

Запчасти Case IH 3016 (60.220.02) - PICKUP FRAME, 12 HEADERS (60) - PRODUCT FEEDING

1

47474308

ARM

LH

1шт.

2

84124381

ARM

RH

1шт.

3

47470119

FRAME

Draper

4шт.

4

84405164

SHAFT

1шт.

5

87686044

PILLOW BLOCK

12шт.

6

84128858

SHIM,38.1mm OD x 5.2mm Thk

8шт.

7

84128856

SHIM

4шт.

8

84131078

ROLLER,88.9mm OD x 3904.2mm L

Transfer

2шт.

9

84175037

ROLLER,88.9mm OD x 1884.7mm L

RH Picking

1шт.

10

84175036

ROLLER,88.9mm OD x 1945.5mm L

LH Picking

1шт.

11

84131086

ROLLER,88.9mm OD x 1841.2mm L

2шт.

12

479370R1

KEY,1/4" Sq x 2", Par

2шт.

13

84165663

SET

1шт.

14

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

8шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

30шт.

16

9706685

NUT,M12 x 1.75, Cl 8

30шт.

17

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

18

9837937

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

19

84128843

THREADED ROD

2шт.

20

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

16шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

24шт.

22

87305403

SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk

16шт.

23

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

8шт.

24

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.
