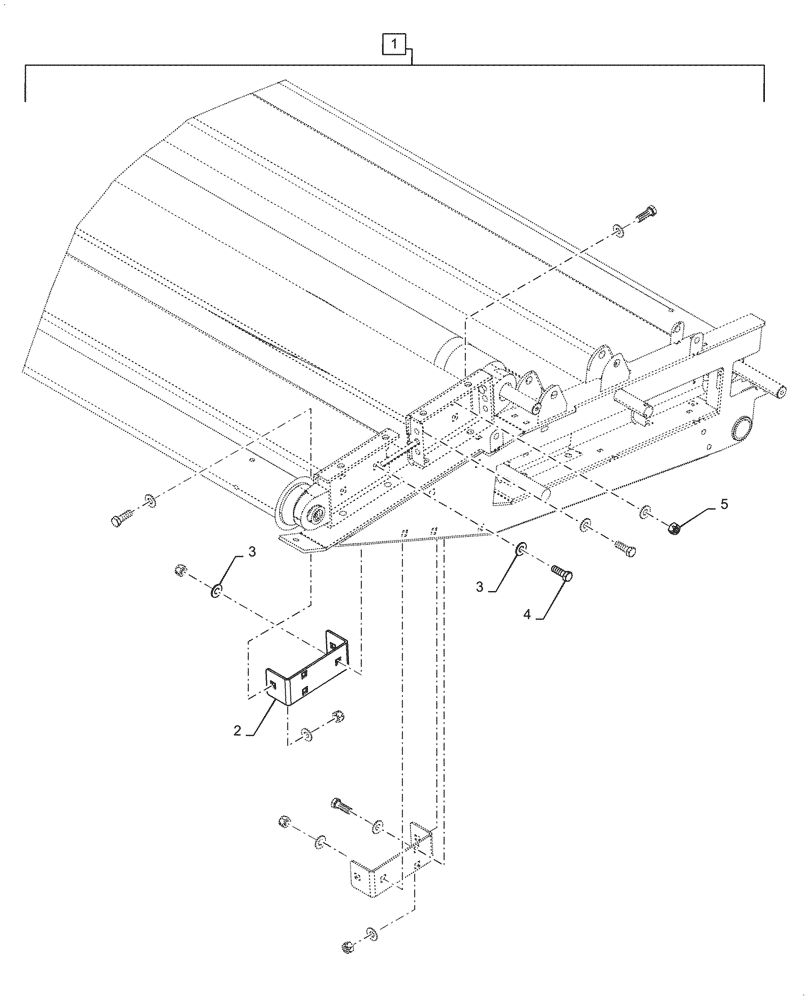

Запчасти Case IH 3016 (58.130.03[04]) - KIT DRAPER FRAME BRACKETS (58) - ATTACHMENTS/HEADERS

1

47481283

DIA KIT, HARVESTER

Incl 2 - 5

1шт.

2

47455612

CHANNEL

8шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

80шт.

4

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

40шт.

5

100038

NUT,M12 x 1.75, Cl 8

40шт.
