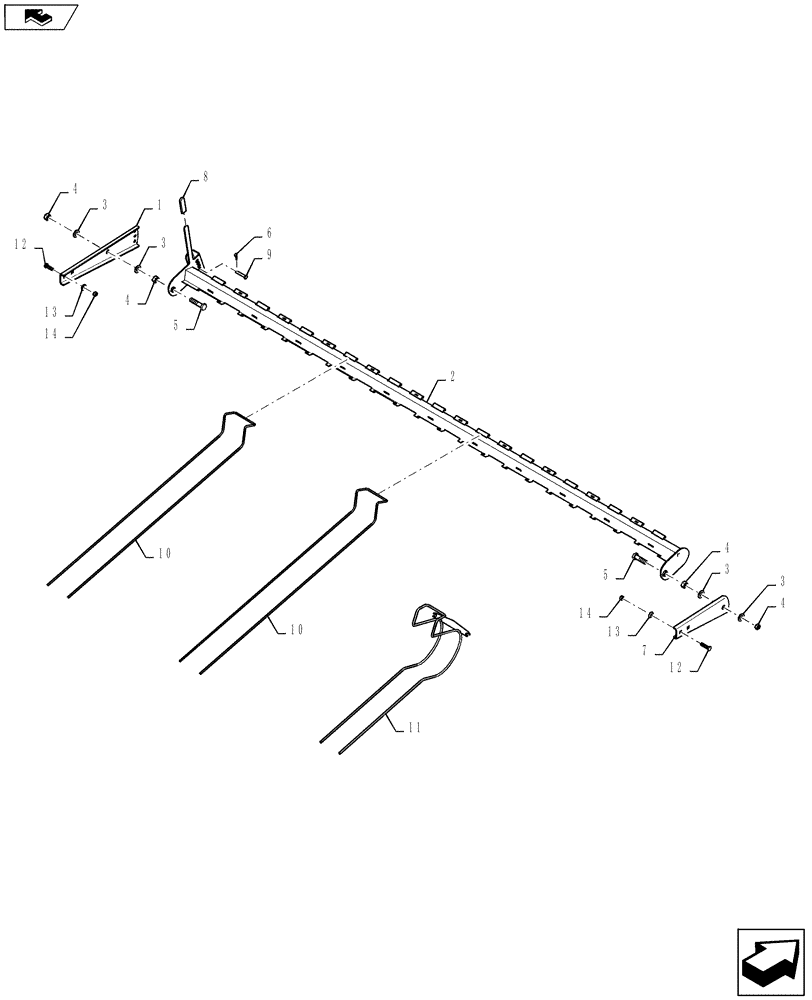

Запчасти Case IH 3016 (58.130.03[01]) - TINE BAR, 12 FT AND 15FT (58) - ATTACHMENTS/HEADERS

1

84140435

ANGLE

LH, Serial Range: -YES058000

1шт.

1

47637674

MOUNT

LH, Start Serial: YES058001

1шт.

2

84231233

TINE BAR

12' Headers, Serial Range: -YES058000

1шт.

2

47677897

TINE BAR

12' Headers, Start Serial: YES058001

1шт.

2

84140439

TINE BAR

15' Headers, Serial Range: -YDS036286

1шт.

2

47564078

TINE BAR

15' Headers, Serial Range: YDS036287-YES058000

1шт.

2

47677899

TINE BAR

15' Headers, Start Serial: YES058001

1шт.

3

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

4шт.

4

9706694

NUT,Hex, M20, Cl 8

4шт.

5

412346

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

2шт.

6

216698

COTTER PIN,0.125" OD x 1.75" L

12' Header

11шт.

6

216698

COTTER PIN,0.125" OD x 1.75" L

15' Header

14шт.

7

84292206

MOUNT

RH

1шт.

8

219838

HANDLE GRIP

1шт.

9

87035064

CLEVIS PIN,12mm OD x 70mm L

1шт.

10

84231228

TINE,Formed, 2 Prongs, 1390.7mm L

11шт.

12' Headers

1шт.

10

84231228

TINE,Formed, 2 Prongs, 1390.7mm L

14шт.

15' Headers

1шт.

11

84231230

TINE,Formed, 2 Prongs, 850mm L

Short Crop, Optional, Serial Range: -YES058000

13шт.

15' Headers

1шт.

11

47464848

TINE

Short Crop, Start Serial: YES058001

13шт.

15' Headers

1шт.

12

334682

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

14

9706685

NUT,M12 x 1.75, Cl 8

4шт.
