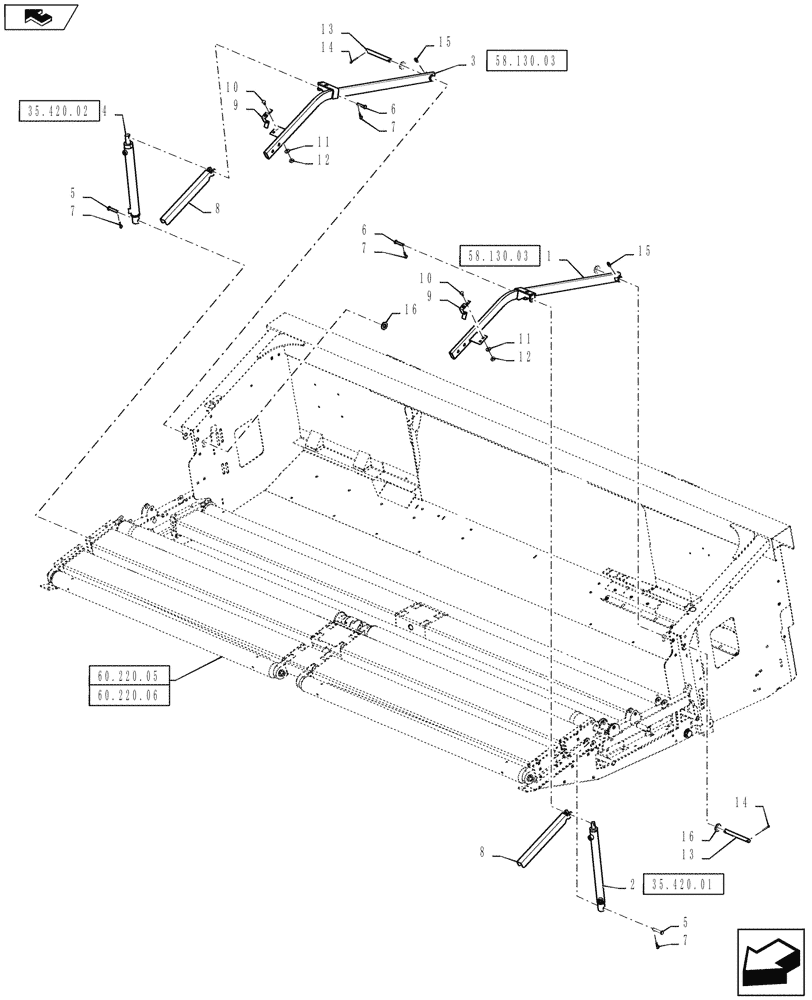

Запчасти Case IH 3016 (58.130.02) - WINDGUARD HOLD DOWN (58) - ATTACHMENTS/HEADERS

1

84232418

ARM

LH

1шт.

2

87485411

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 400mm Stroke

LH

1шт.

3

84232425

ARM

RH

1шт.

4

87485412

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 400mm Stroke

RH

1шт.

5

87035064

CLEVIS PIN,12mm OD x 70mm L

2шт.

6

379547

CLEVIS PIN,10mm OD x 60mm OAL

2шт.

7

216698

COTTER PIN,0.125" OD x 1.75" L

4шт.

8

84182650

CHANNEL

2шт.

9

84295529

SPRING CLIP

2шт.

10

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

4шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

12

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

13

84140438

PIN,19.05mm OD x 188mm L

2шт.

14

733-6340

COTTER PIN,M6.3 x 40

4шт.

15

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

16

896-15018

WASHER,20mm ID x 41mm OD x 5mm Thk

4шт.
