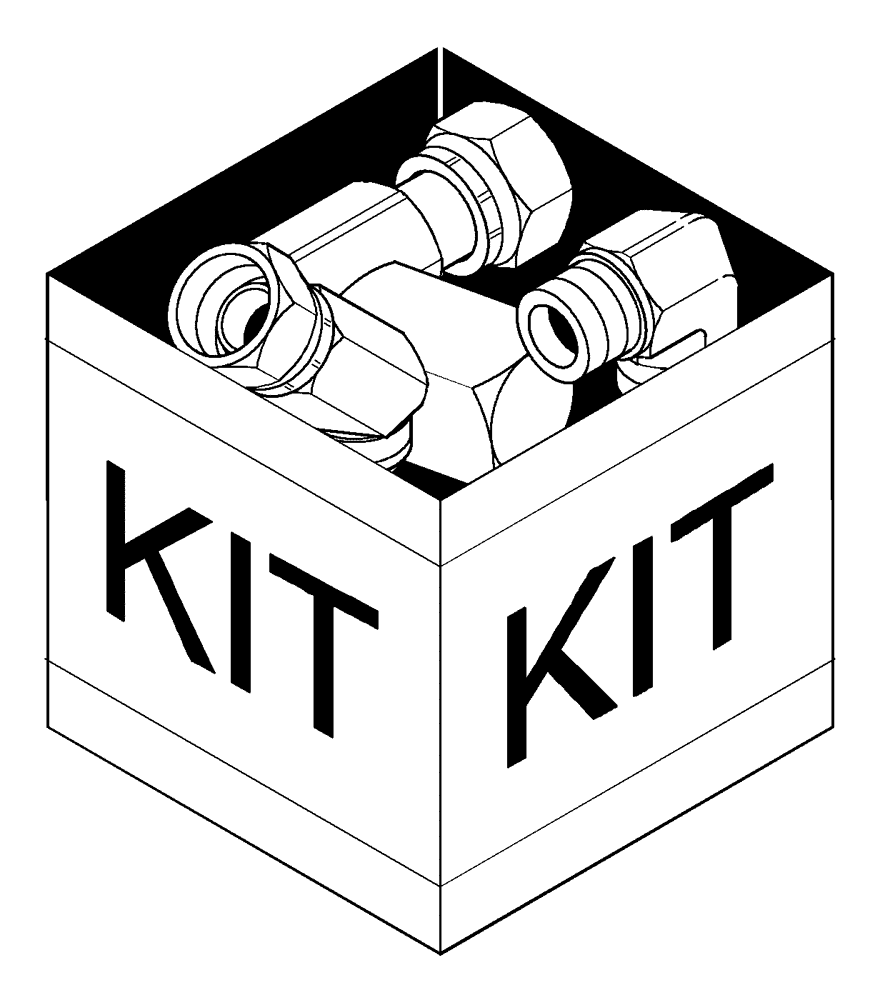

Запчасти Case IH 3016 (58.120.07) - COMPLETING PACKAGE FOR AF5088, AF6088, AF7088 (58) - ATTACHMENTS/HEADERS

1

84392683

PACKAGE

Completing for AF5088,6088,7088 Combines, Includes: Ref. 2 - 11

1шт.

2

84224155

AUGER FLIGHT

RH

1шт.

3

84224152

AUGER FLIGHT

LH

1шт.

4

353308

NUT,M6 x 1.0, Cl 8

8шт.

5

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

16шт.

6

87471091

COVER

4шт.

7

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

9

100016

NUT,M10 x 1.5, Cl 8

4шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

11

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

6шт.

12

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

1шт.

Reuse Existing Hardware

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

Reuse Existing Hardware

1шт.
